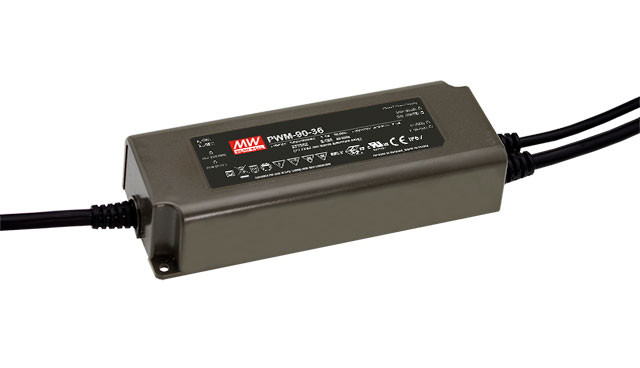

Mean Well PWM-90 Power Supply IP67 12V

The Mean Well PWM-90-12 is a high-performance constant voltage LED driver with PWM output, designed for smooth, flicker-free dimming of LED strips and lighting systems. Built with active PFC, universal AC input, and comprehensive protection, it’s ideal for both indoor and outdoor LED applications.

✔ 12V DC constant voltage PWM output – ensures even brightness across LED strips
✔ Universal AC input (up to 350VAC) with active PFC
✔ High efficiency up to 90%
✔ 0–100% dimming – compatible with 1–10V analogue dimmers
✔ Comprehensive protections: short circuit, overcurrent, overvoltage, overtemperature
✔ Durable IP65 housing – suitable for dry, damp, and wet locations
✔ PWM output – delivers smooth, stable dimming performance
✔ Supplied with 1.8m flex & plug for quick installation
✔ Certified to SAA / UL / CE / RoHS and international EMC standards

Specifications

Model: PWM-90-12

Output Voltage: 12V DC

Output Current: 7.5A

Output Power: 90W

Output Type: Constant voltage PWM style

Input Voltage: 100–240V AC (up to 350VAC, 47–63Hz)

Input Current: ~0.5A (depending on load and input voltage)

Efficiency: Up to 90%

Dimming Range: 0–100% (only with 1–10V analogue dimmers)

Protections: Short circuit, overcurrent, overvoltage, overtemperature

IP Rating: IP65 (indoor/outdoor use)

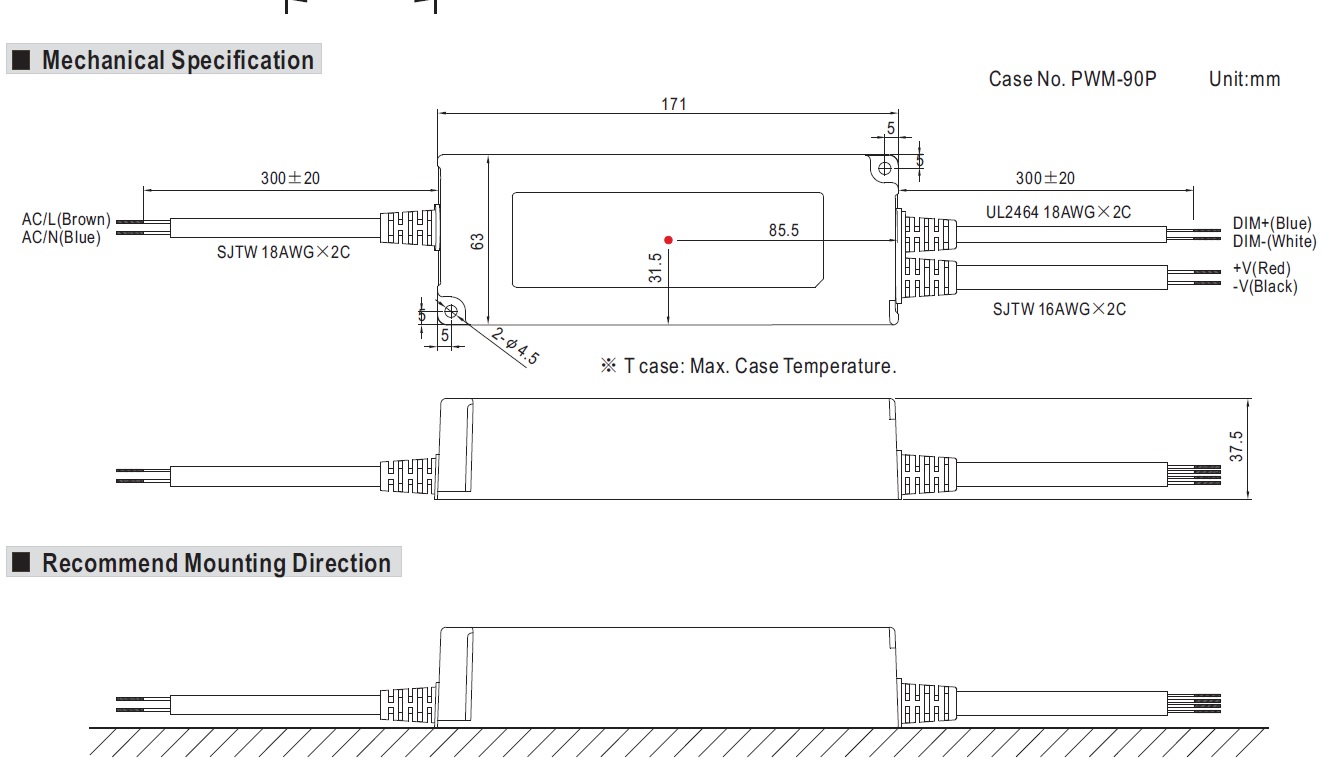

Dimensions: 171 × 63 × 37.5 mm

Safety Compliance: EN55015, EN61000-3-2 Class C (≥60% load), EN61000-3-3

EMC Compliance: EN61000-4-2,3,4,5,6,8,11; EN61547 (light industry level, surge L–N: 2KV)

A premium dimmable 12V 90W LED driver from Mean Well, engineered for safe, reliable, and efficient performance. Compatible with 1–10V dimmers.



 Installation with Mean Well Analogue 1-10V Dimming Switch
