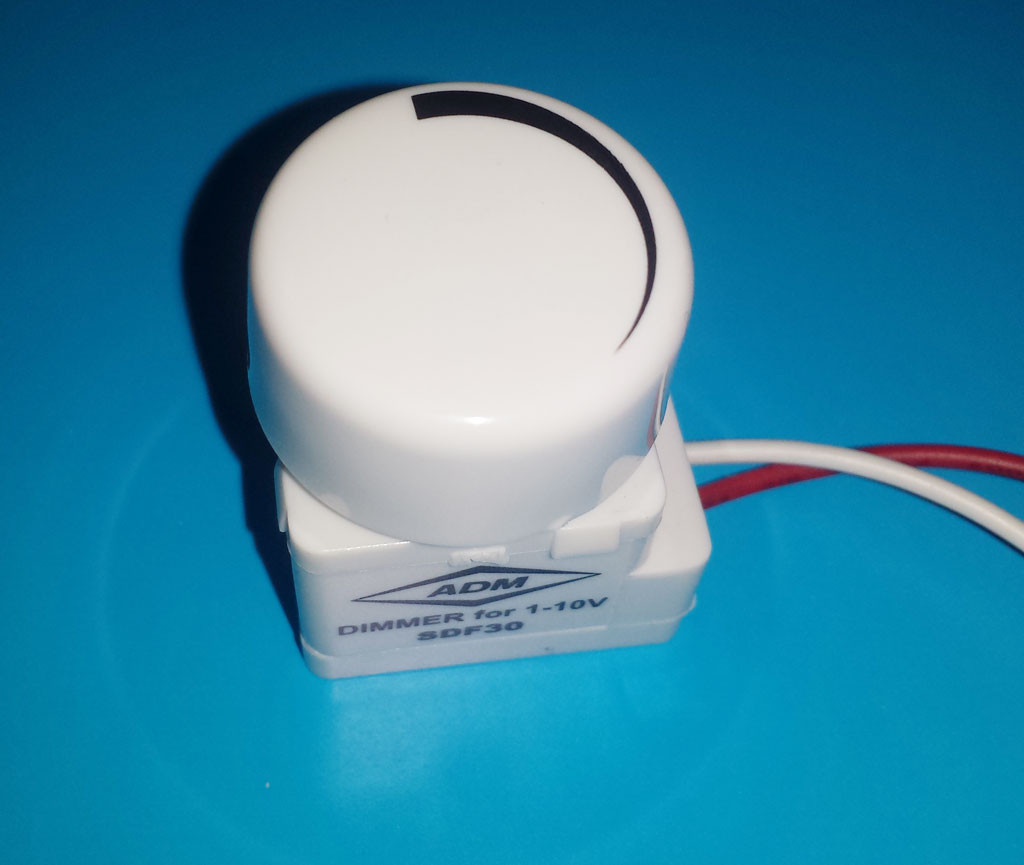

1-10V analogue LED dimming switch module with control knob for smooth brightness adjustment

Close up of 1-10V LED dimmer rotary knob for precise lighting control

Wall mounted 1-10V dimming switch panel for LED lighting systems

ADM SDF30 1-10V dimmer wiring: red wire to DIM+, white wire to DIM-, up to 30 drivers

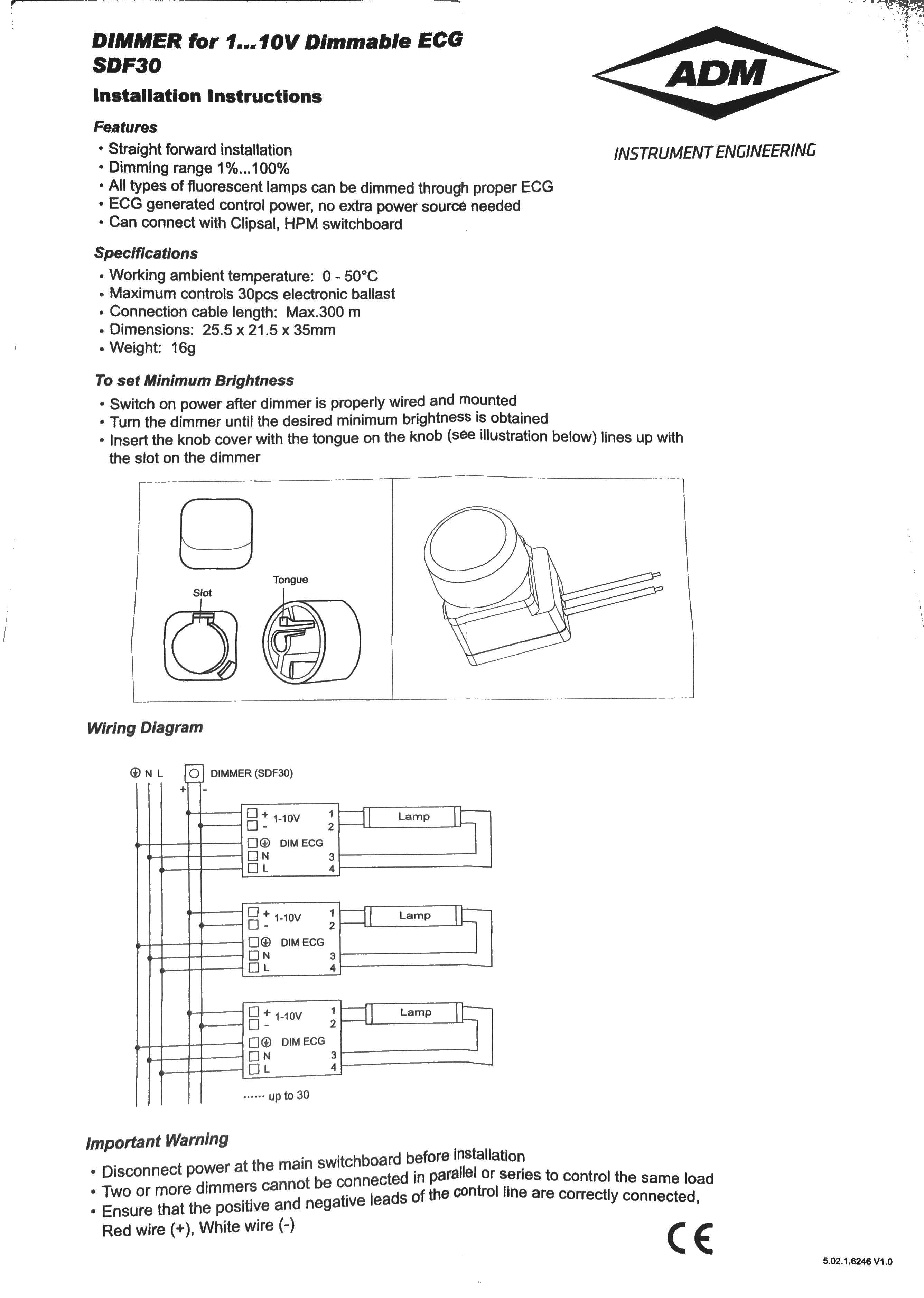

Wiring diagram for 1-10V analogue dimmer switch showing connection to LED drivers

Analogue 1-10V Dimming Switch

Name: Analogue 1-10V Dimming Switch
Brand: VolkaLighting
SKU: VL-PSOSDF-30
Price: 15.00 AUD
Availability: InStock

SKU: VL-PSOSDF-30

$15.00inc. GST

● Only 7 left

Warranty: 2 years

Product details

Analogue 1-10VDC Dimming Switch

· Compatible with most Clipsal and HPM Wall Plates

· Dimensions: 25 x 25 x 32mm

Fits into most standard wall plates.

The SDF-30 is an electronic 1-10V dimmer pot, which is compatible with the Mean Well HLG ‘B’ and LPF-D LED drivers.

Being a two-wire pot, all that is required is to connect them to the two dimming wires from the Mean Well LED driver.

No external power supply is required. By wiring the dimming leads in parallel the SDF-30 can be used to control multiple Mean Well LED drivers at the same.

The SDF-30 compatible with Clipsal and HPM (and probably other) switch plates, so they can be mounted in a standard architrave switch fitting.

They do not dim all the way to zero, so a separate on/off switch will be required.

http://www.meanwellaustralia.com.au/news/can-i-use-mean-well-led-driver-wall-plate-dimmer
