Mean Well PWM-200 Power Supply IP67 12V

The Mean Well PWM-200-12 is a high-power constant voltage LED driver with PWM output, engineered for smooth, flicker-free dimming of LED strips and lighting systems. With 0-100% dimming down to 0% output, high efficiency, and IP65 protection, it’s the ideal solution for large-scale residential, commercial, and outdoor LED installations.

✔ 12V DC constant voltage PWM output - stable and even brightness
✔ Dims smoothly from 100% down to 0%
✔ High efficiency up to 90.5%
✔ 0-100% dimming - compatible  with 1-10V analogue dimmers
✔ Comprehensive protections: short circuit, overcurrent, overvoltage, overtemperature
✔ Durable IP65 enclosure - suitable for dry, damp, and wet locations
✔ PWM style output - ensures flicker-free dimming and consistent brightness
✔ Supplied with 1.8m flex & plug for easy installation

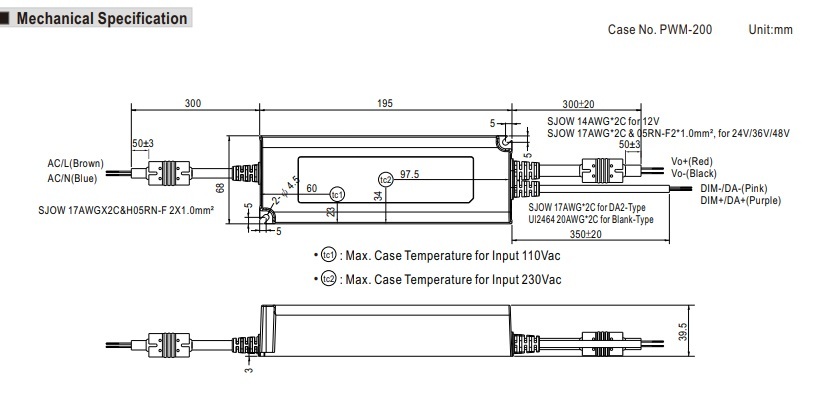

✔ Compact power design (195 × 68 × 39.5 mm)
✔ Certified to SAA / UL / CE / RoHS and international EMC standards

Specifications

• Model: PWM-200-12

• Output Voltage: 12V DC

• Output Current: 16.7A

• Output Power: 200W

• Output Type: Constant voltage PWM style

• Efficiency: Up to 90.5%

• Dimming Range: 0-100% (only with 1-10V analogue dimmers)

• Protections: Short circuit, overcurrent, overvoltage, overtemperature

• IP Rating: IP65 (indoor/outdoor use)

• Dimensions: 195 × 68 × 39.5 mm

• Connection: 1.8m flex & plug

A high-capacity dimmable 24V 200W LED driver from Mean Well, delivering reliable, smooth dimming and efficiency for large LED lighting installations. Compatible with 1-10V dimmers.
