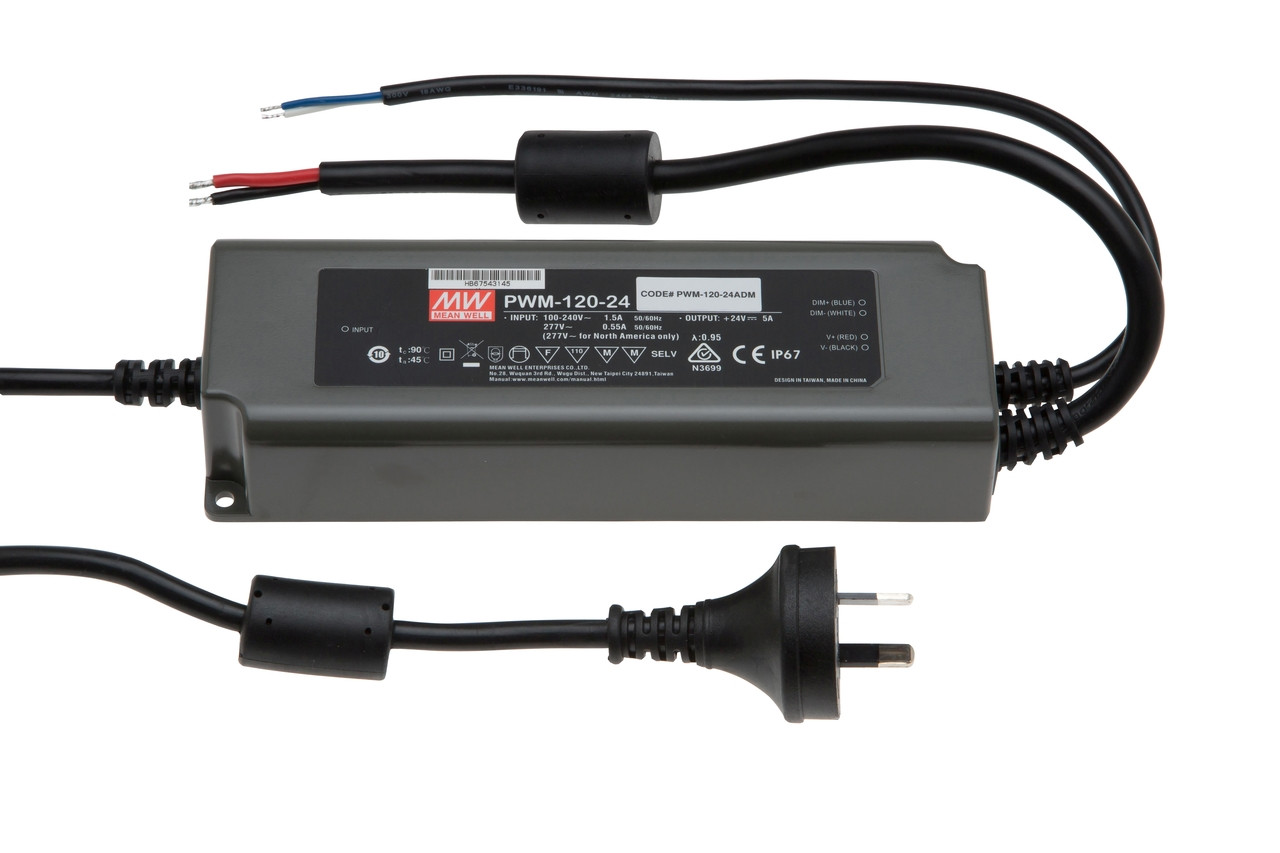

Mean Well PWM-120 Power Supply IP67 24V

The Mean Well PWM-120-24 is a powerful constant voltage LED driver with PWM output, engineered for smooth, flicker-free dimming of LED strips and lighting systems. With high efficiency and 0-100% dimming capability, it’s ideal for large residential, commercial, and architectural installations.

✔ 24V DC constant voltage PWM output - delivers even brightness across LED strips
✔ Dims from 100% down to 0% output
✔ High efficiency up to 90.5%
✔ 0-100% dimming - compatible with 1-10V analogue dimmers
✔ Durable IP67 housing - suitable for dry, damp, and wet locations
✔ Supplied with 1.8m flex & plug for quick installation
✔ PWM output design - ensures stable and smooth dimming
✔ Certified to international safety and EMC standards

Specifications

Model: PWM-120-24

Output Voltage: 24V DC

Output Current: 5A

Output Power: 120W

Output Type: Constant voltage PWM style

Efficiency: Up to 90.5%

Dimming Range: 0-100% (only with 1-10V analogue dimmers)

IP Rating: IP67 (indoor/outdoor use)

Dimensions: 191 × 63 × 37.5 mm

Connection: 1.8m flex & plug

A premium 24V 120W dimmable LED driver from Mean Well, delivering reliable, smooth dimming performance and high efficiency for demanding LED installations. Compatible with 1-10V dimmers.

 Installation with Mean Well Analogue 1-10V Dimming Switch
