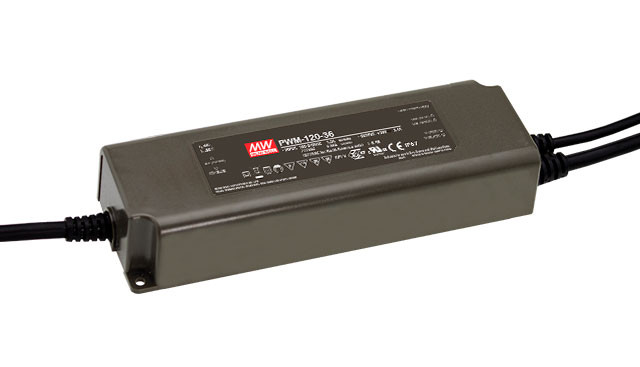

Mean Well PWM-120 Power Supply IP67 12V

The Mean Well PWM-120-12 is a robust constant voltage LED driver with PWM output, delivering smooth dimming and stable brightness for LED strips and lighting systems. With active PFC, universal AC input, and IP67 housing, it is built for professional-grade residential, commercial, and outdoor lighting projects.

✔ 12V DC constant voltage PWM output - even, flicker-free dimming
✔ Universal AC input (up to 350VAC) with active PFC function
✔ High efficiency up to 90%
✔ 0-100% dimming - compatible with 1-10V analogue dimmers
✔ Comprehensive protections: short circuit, overcurrent, overvoltage, overtemperature
✔ Durable IP67 enclosure - suitable for dry, damp, and wet locations
✔ PWM style output - ensures smooth and consistent LED dimming
✔ Supplied with 1.8m flex & plug for easy installation
✔ Certified to SAA / UL / CE / RoHS and international EMC standards

Specifications

Model: PWM-120-12

Output Voltage: 12V DC

Output Current: 10A

Output Power: 120W

Output Type: Constant voltage PWM style

Input Voltage: 100-240V AC (up to 350VAC, 47-63Hz)

Input Current: ~1.2A (depending on load and input voltage)

Efficiency: Up to 90%

Dimming Range: 0-100% (only with 1-10V analogue dimmers)

Protections: Short circuit, overcurrent, overvoltage, overtemperature

IP Rating: IP67 (indoor/outdoor use)

Dimensions: 191 × 63 × 37.5 mm

Safety Compliance: EN55015, EN61000-3-2 Class C (≥60% load), EN61000-3-3

EMC Compliance: EN61000-4-2,3,4,5,6,8,11; EN61547 (light industry level, surge L-N: 2KV)

A powerful dimmable 12V 120W LED driver from Mean Well, designed for smooth dimming and reliable performance in demanding LED applications. Compatible with 1-10V dimmers.

View full product details on Mean Well site

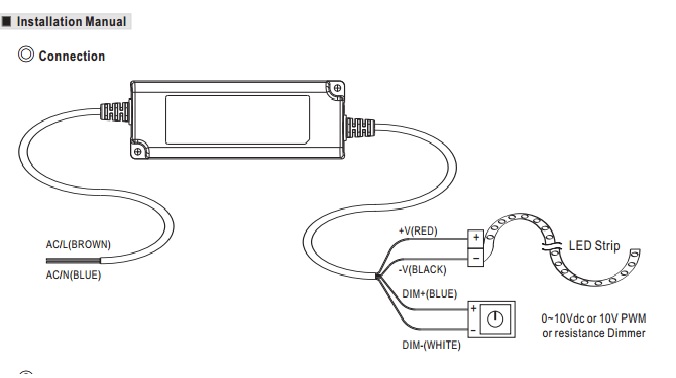

 Installation with Mean Well Analogue 1-10V Dimming Switch
