Home  /  Wide Box Aluminium LED Profile PA-28

Wide Box Aluminium LED Profile PA-28

SKU: VL-PA28
From$24.00inc. GST
● In stock
Channel Colour

Diffuser only means the diffuser cover on its own: no aluminium channel and no end caps.

Length
Diffuser type

Warranty: 1 year

Product details

The PA-28 Wide Box Aluminium LED Profile is a robust LED channel suitable for both surface mounting and suspension. Its wide housing design allows for high-output strip installations and smooth light diffusion.

Package includes:

  • Aluminium profile (1m, 2m or 3m)
  • Semi-frosted diffuser
  • 2 end caps

Options: choose No diffuser for the profile without a diffuser (end caps still included), or Diffuser only for the diffuser cover on its own, with no aluminium channel. A diffuser on its own comes without end caps; if you need them, add a note to your order.

Applications: commercial spaces, retail lighting, kitchens, exhibitions, architectural lighting

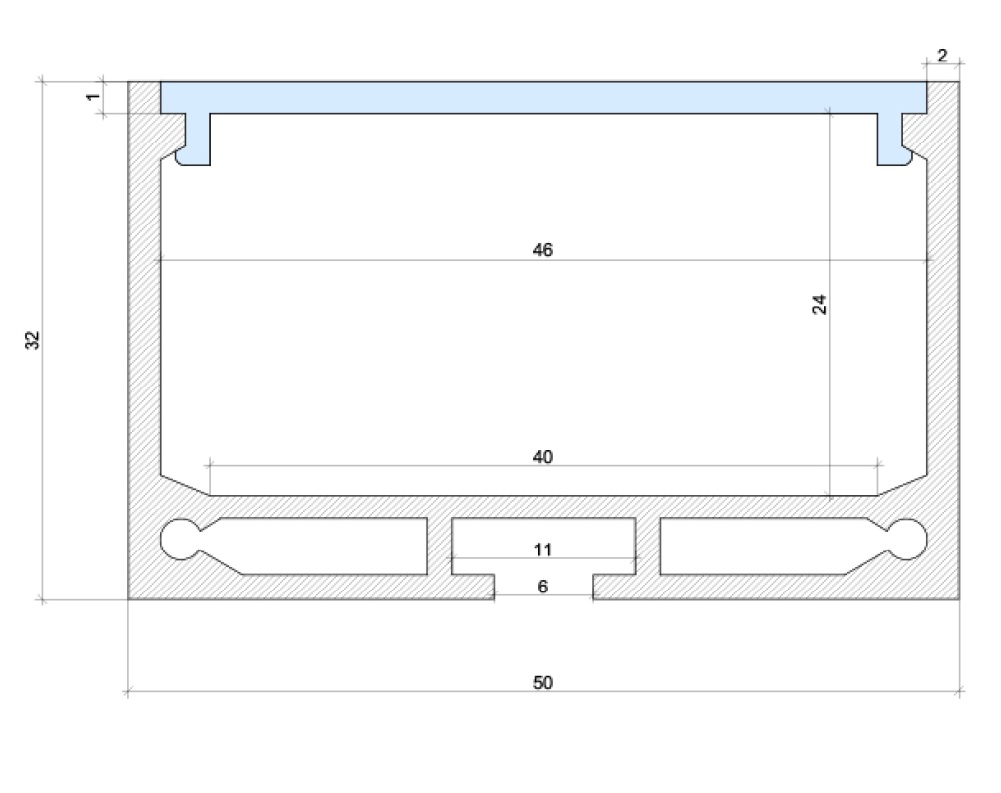

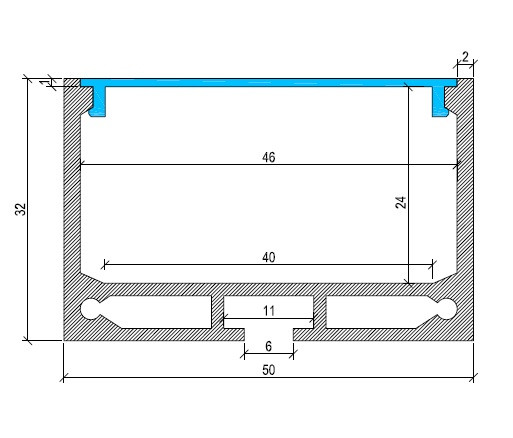

PA-28 profile cross-section

Optional: Middle Joiner Connector and Suspension kit

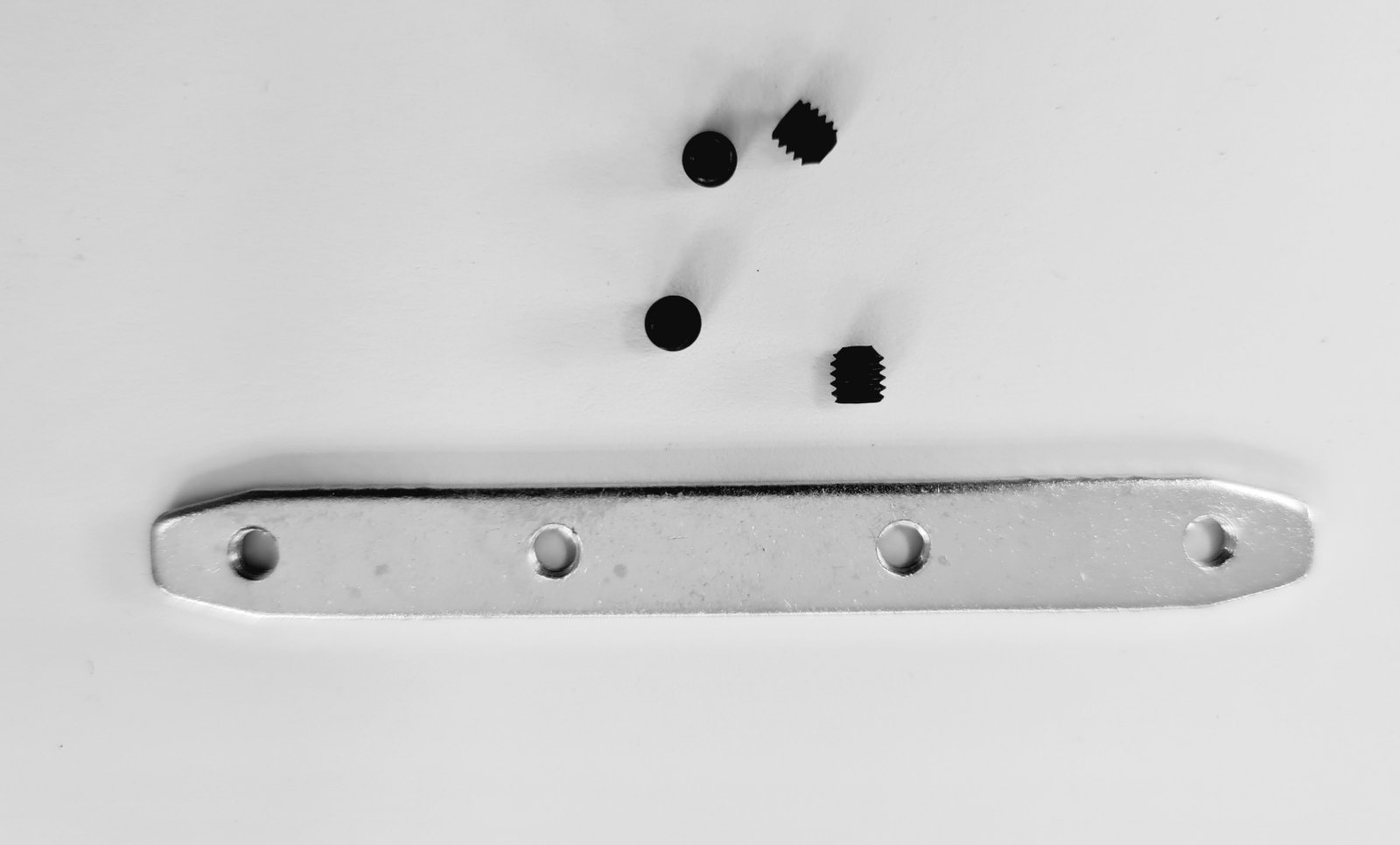

Middle joiner connector  Suspension kit

Specifications

Size50 x 35mm
Inner width46mm
Lengths1m, 2m or 3m
FinishesSilver
Diffuserssemi-frosted
MountingSurface
IP ratingIP20
