Home  /  Wide Aluminium LED Profile Surface Mounted

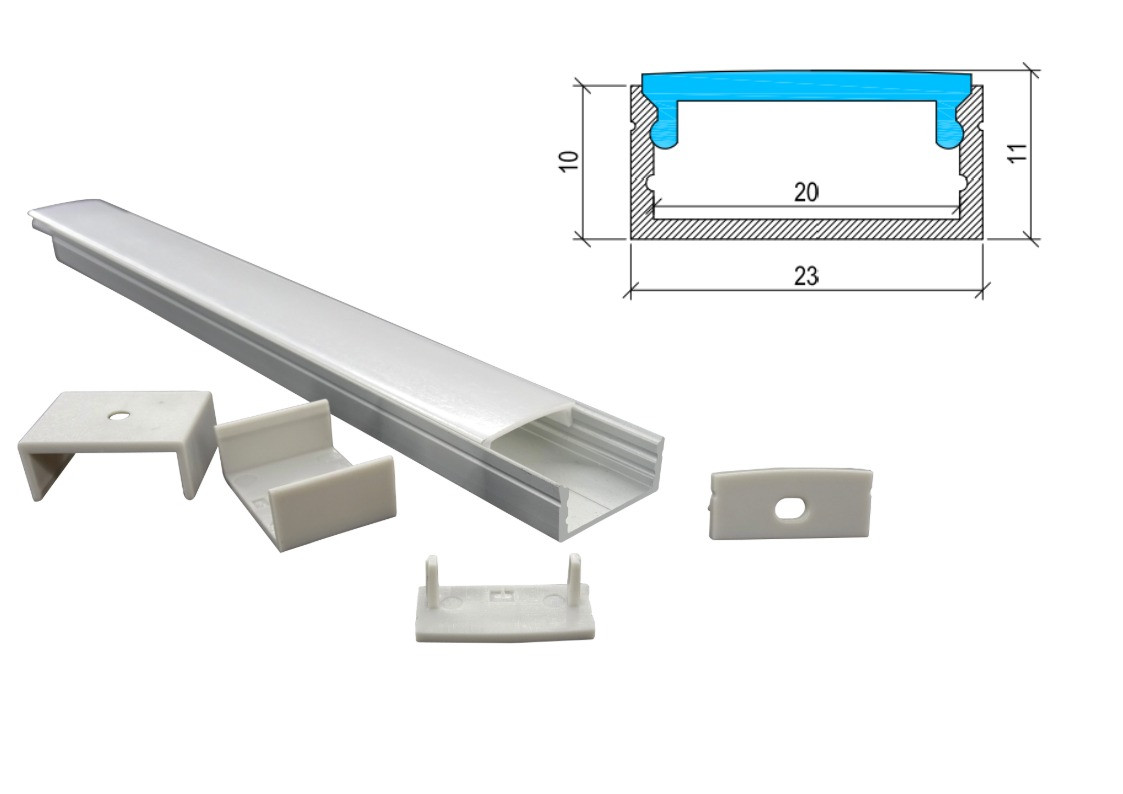

Wide surface mounted LED profile kit with aluminium channel diffuser end caps and mounting accessories
Wide surface mounted LED profile kit with aluminium channel diffuser end caps and mounting accessoriesPA-02 cross-section with dimensionsWide aluminium LED profile extrusion for surface mounting designed for high output LED strip lightingWide surface mounted LED profile with diffuser and mounting components for complete installationWide LED aluminium surface profile showing clean linear design for architectural lighting applicationsLED profile end cap for wide aluminium surface mounted channel providing clean finished edgeLED profile mounting plate accessory for securing wide surface mounted aluminium LED channel

Wide Aluminium LED Profile Surface Mounted

SKU: VL-PA02
From$9.60inc. GST
● In stock
Channel Colour

Diffuser only means the diffuser cover on its own: no aluminium channel and no end caps.

Length
Diffuser type

Warranty: 1 year

Product details

The PA-02 Wide Aluminium LED Profile is designed for larger or multiple LED strip installations, providing excellent heat management and a broader light spread. Ideal for high-output applications.

Package includes:

  • Aluminium profile (1m, 2m or 3m)
  • Diffuser (Clear, Semi-frosted or Frosted)
  • 2 end caps
  • 2 mounting clips per metre

Options: choose No diffuser for the profile without a diffuser (end caps and clips still included), or Diffuser only for the diffuser cover on its own, with no aluminium channel. A diffuser on its own comes without end caps or clips; if you need them, add a note to your order.

Applications: kitchen benches, retail shelves, exhibitions, architectural lighting

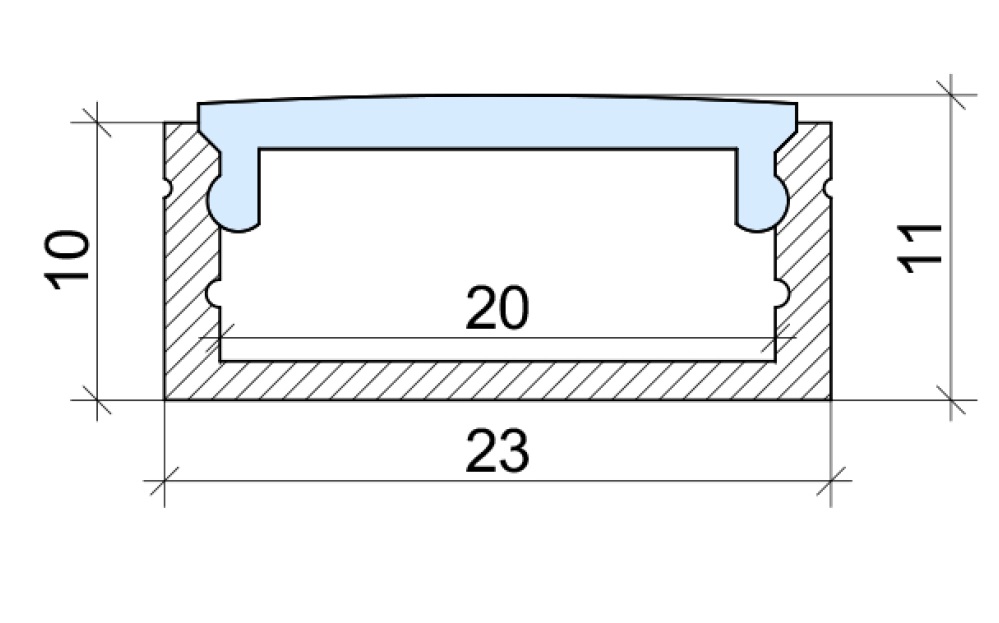

PA-02 profile cross-section  The three diffusers: clear, semi-frosted and frosted

Specifications

Size24 x 11mm
Inner width20mm
Lengths1m, 2m or 3m
FinishesSilver
Diffusersclear, semi-frosted or frosted
MountingSurface
IP ratingIP20
