Single Colour LED Power Distributor

Single Colour 9-Way Power Distributor

One in, nine out. This tool-free DC power distributor splits a single LED power supply into nine separate outputs, making it quick and tidy to power multiple single colour LED strip runs from one driver. Lever terminals mean no screws and no soldering. Just strip, lift, insert and close.

Features

• 1 input splits to 9 outputs (+/−)
• Tool-free push-in lever terminals, no screws or soldering
• Wide DC 5–48V range, suits 12V and 24V LED systems
• Max 25A total, max 10A per output
• Accepts 22–12AWG (0.32–4.0mm²) wire
• Colour-coded levers: red (+), grey (−)
• Screw-mount housing, 2 mounting screws included

Technical Specifications

SKU	VL-HPD-MONO-19
Input Voltage	DC 5–48V
Input	1 × (+/−) lever terminal
Outputs	9 × (+/−) lever terminals
Max Total Current	25A
Max Current per Output	10A
Wire Size	22–12AWG (0.32–4.0mm²)
Strip Length	8mm
Connection	Push-in lever, tool-free
Mounting	2 × screw holes

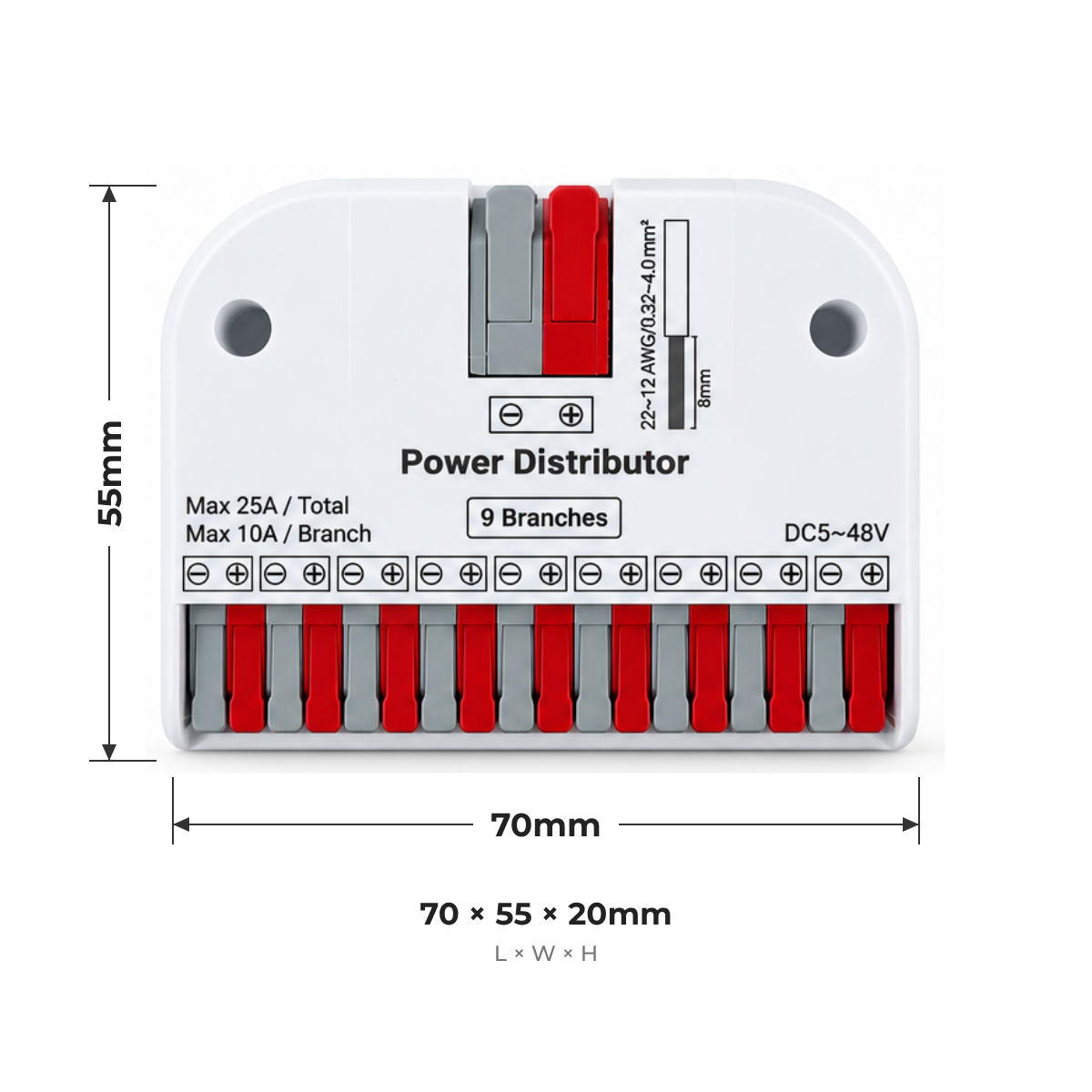

Dimensions	70 × 55 × 20mm (L × W × H)
Housing	White
IP Rating	IP20, indoor/dry use only

Load Capacity

System Voltage	Max Total (25A)	Max per Output (10A)
DC 5V	125W	50W
DC 12V	300W	120W
DC 24V	600W	240W
DC 36V	900W	360W
DC 48V	1200W	480W

Total load must not exceed 25A across all 9 outputs, and must not exceed the power supply rating. Size wire gauge to the output current and run length.

Installation

1. Isolate power. Strip 8mm of insulation from each wire (22–12AWG).
2. Lift the lever on the terminal you are wiring.
3. Push the bare wire fully in: red (+), grey (−).
4. Close the lever and tug-test. Fix the unit with the 2 screws supplied.

Important Notes

• Do not exceed 10A on any output or 25A in total.
• DC only (5–48V). Never connect 240V AC mains.
• Check polarity before powering up: red (+), grey (−).
• IP20 rated: indoor, dry locations only. Keep away from moisture.

In the Box

• 1 × Single Colour 9-Way Power Distributor
• 2 × Mounting Screws
