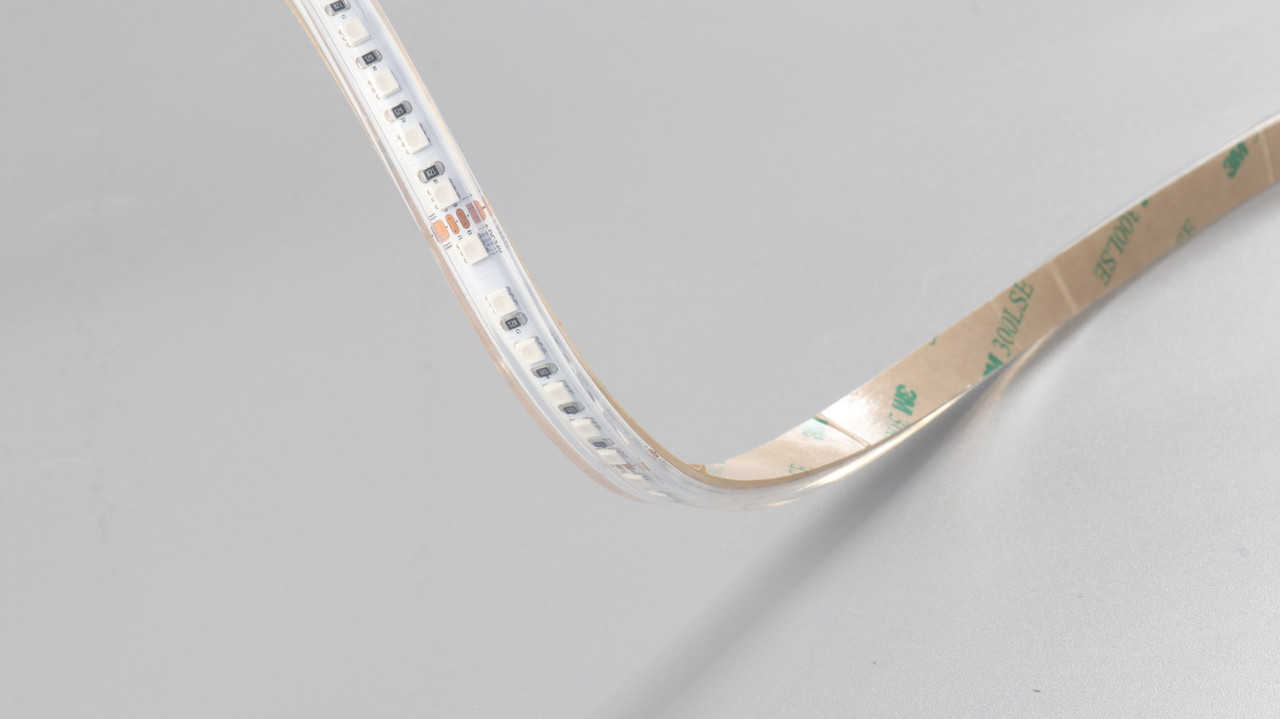

RGB LED Strip 120 LEDs/m 12v 14.4w/m IP65
SKU: VL-3838FXWP120K-12RGB
$23.00 · In stock
Price is per 1 metre. 1 qty = 1 metre. Up to 30 metres per reel.
SMD 3838 RGB LED Strip (12 V – 14.4 W/m, IP65) is a high-density 120 LED/m RGB strip with a silicone coating to protect against dust and water splashes. Ideal for covered outdoor areas, kitchens, bathrooms, under-cabinet, signage and feature lighting where moisture protection is needed.
Key features
- High-density 120 LEDs/m for smooth, even colour output
- IP65 silicone coating — dust-tight and splash-resistant
- Constant-voltage DC 12 V strip
- Dimmable & colour-controllable with compatible RGB controllers
- Flexible PCB for curves and detailed installs
- 3M self-adhesive backing
- 50,000+ hour LED lifespan
Colour output
RGB strip (Red / Green / Blue) mixes colours to create a wide range of shades including purple, cyan, orange, white and more. For best results, use a quality RGB controller.
Wavelengths: Red 620–625 nm · Green 520–525 nm · Blue 465–470 nm
Controller / dimming
This is a constant-voltage 12 V RGB LED strip. For colour control and dimming, use a compatible 12 V RGB controller. For on/off operation you can connect it to a suitable 12 V constant-voltage power supply.
Specifications
- LED modelSMD 3838 RGB
- LED density120 LEDs/m
- VoltageDC 12 V
- Power14.4 W/m
- Cut length50 mm
- Recommended max single-end run5 m
- PCB width10 mm
- Beam angle180°
- IP ratingIP65 (silicone coated — splash-resistant)
- Operating temp−20 °C to +50 °C
- Adhesive3M double-sided tape
- Warranty1 year
- ReelUp to 30 m
Wiring
4-pin cable: Black = V+ (positive) · Red = R · Green = G · Blue = B
Powering longer runs
For lengths beyond 5 m, power the strip from both ends to maintain brightness and colour consistency. At 12 V the current draw is double that of a 24 V strip, so voltage drop is greater — keep runs short or inject power more often.
Selecting the right power supply
Use our calculator to select the correct driver for your strip length and wattage.
