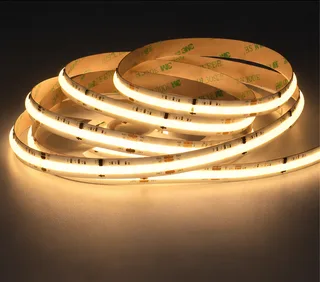

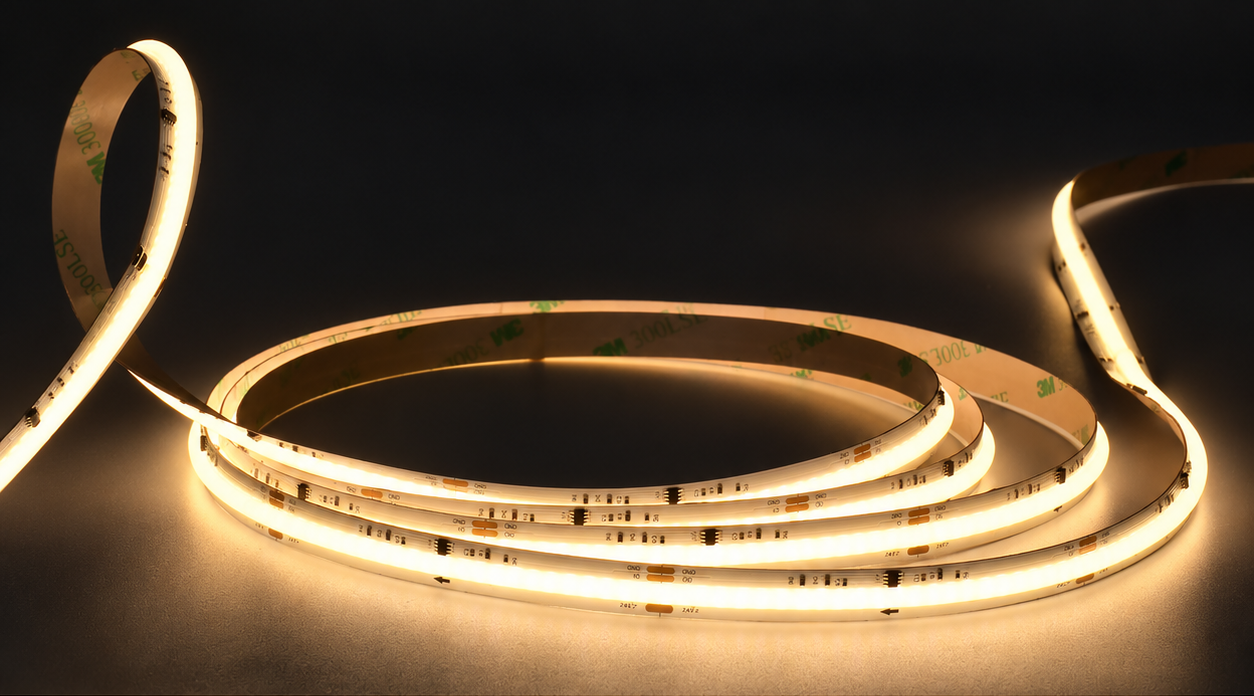

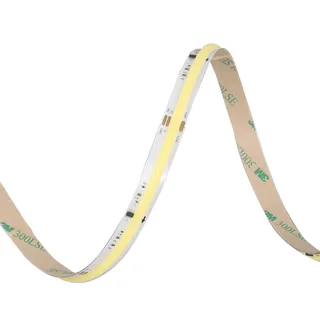

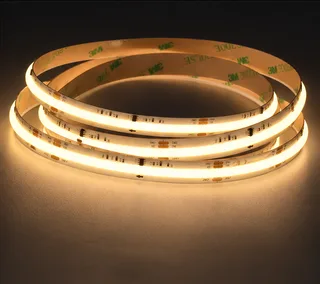

Pixel WS2811 Dotless LED Strip Warm-White 3000k (24V - 12W/m) IP20
SKU: VL-COB360V12-24WW-ICWS2811
$22.20 · In stock
Price is per 1 metre. 1 qty = 1 metre. Supplied on a single continuous reel.
Dotless FCOB Warm White Addressable LED Strip (24 V – 12 W/m, IP20) delivers a smooth, continuous dot-free warm white light line with full individually addressable pixel control. Each segment is driven by an onboard IC, so the strip can run flowing, chasing, comet and sequential fade effects along its length instead of simply switching on all at once. Ideal for staircases, hallways, ceilings and coves, feature walls, joinery, retail displays and architectural accent lighting where you want warm white light with movement.
Key features
- Addressable warm white pixels: independent control per segment
- True dot-free FCOB output (smooth light line)
- Dynamic effects: flowing, chasing, comet, breathing, sequential fade on/off (with a compatible controller)
- Constant-voltage DC 24 V strip
- Flexible PCB for curves and detailed installs
- Premium 3M 300LSE self-adhesive backing
- High colour accuracy: 3000 K, CRI 90
- Cuttable every 50 mm at marked cut points
Light output
Unlike a standard warm white strip (where the whole run switches and dims together), this strip uses an integrated control chip so each section can be switched and dimmed independently. That is what enables flowing "running water" effects, comet/chase effects and a smooth sequential fade along the run. The colour is a fixed 3000 K warm white; it does not change colour. For full control you will need a compatible addressable (pixel) controller.
Voltage / power
- 24 V version: 12 W/m (0.5 A/m), cuttable every 50 mm, max single-end run 10 m before the data signal begins to drop off
Controller / dimming
This is an addressable (WS2811) 24 V warm white strip and requires a matching 24 V addressable / pixel controller that supports WS2811 (commonly listed as SPI, pixel or "running water" controllers). It will not work with a standard single-colour dimmer or controller. Data flows in one direction only, from the input (DIN) end towards the output (DOUT) end, so connect your controller at the marked input end.
Specifications
- LED modelFCOB warm white (dotless, addressable)
- VoltageDC 24 V
- Power12 W/m
- Current0.5 A/m
- Colour temperature3000 K warm white
- CRI90
- Luminous flux1100 lm/m
- IC typeWS2811 (addressable)
- Pixels per metre20 (one pixel per 50 mm segment)
- Cut length50 mm
- PCB width10 mm
- Max single-end run10 m
- Beam angle180°
- IP ratingIP20 (non-waterproof)
- Operating temp−20 °C to +50 °C
- Adhesive3M 300LSE tape on the back of the strip
- Warranty1 year
Powering longer runs
- Power injection: for longer runs, feed 24 V to both ends (or inject power at intervals) to keep brightness consistent along the strip.
- Data direction: the data signal only travels one way. Keep the controller at the input (DIN) end so the effects run in the correct order.
Selecting the right power supply
Use our calculator to select the correct 24 V driver for your strip length and wattage. At 12 W/m, allow roughly 120 W for a 10 m run, plus headroom.
Not sure what you need?
If you are unsure which addressable controller or power supply suits your project, our team is here to help. We will take the time to understand your application and make sure you get exactly what you need, no guesswork. We can recommend the correct products, prepare pre-cut lengths, solder custom wires, or supply a complete ready-to-install kit with aluminium profile and accessories.
