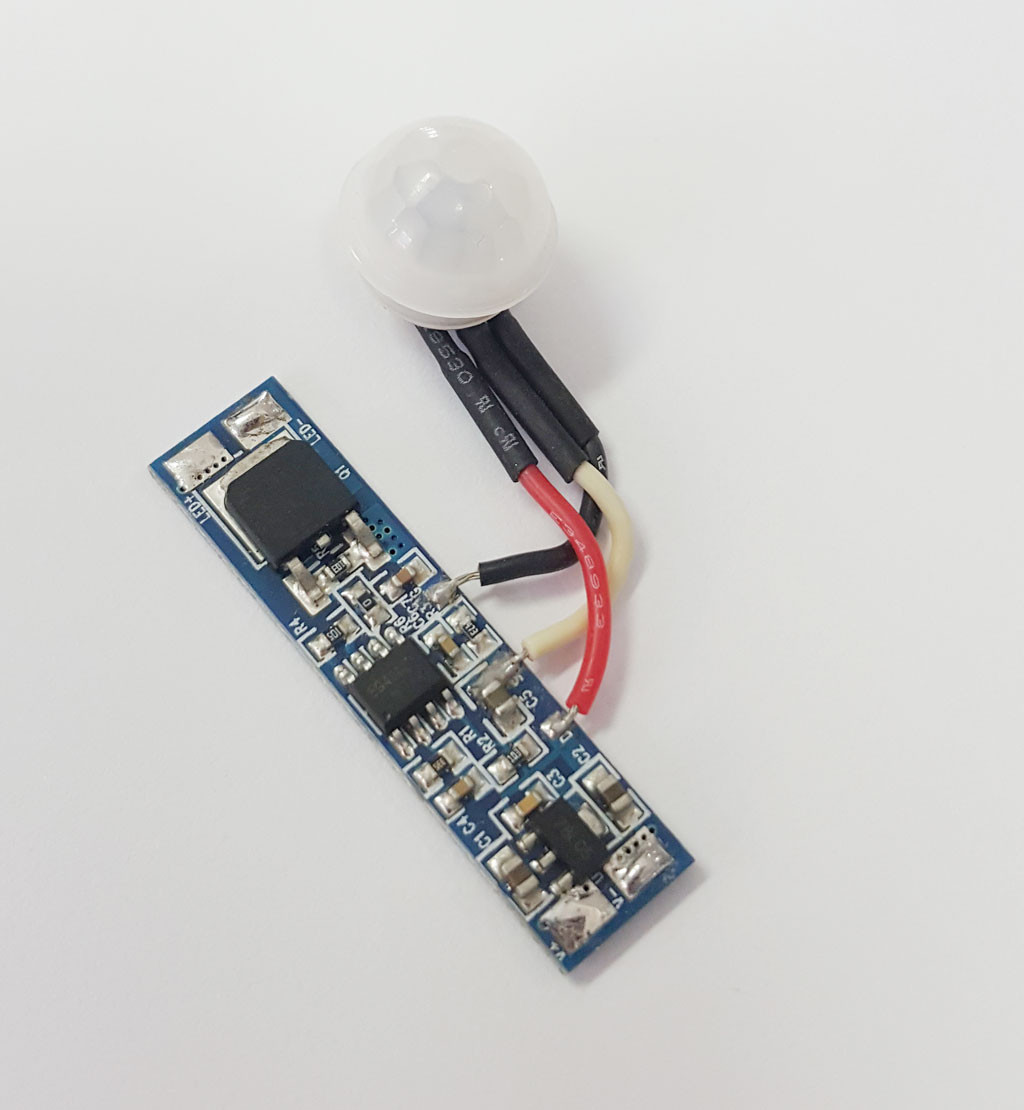

PIR motion sensor switch module for automatic LED strip lighting control with compact design
PIR motion sensor switch module for automatic LED strip lighting control with compact designPIR sensor switch board with its detector head: input end on the left, output end on the rightPIR sensor switch install: drill a 10.5 mm hole, push the detector head in, wire the 12V or 24V driver to V+ and V- and the LED strip to LED+ and LED-; board 52 x 10 mm, fits profiles 6 to 20 mm inside

PIR Motion Sensor Switch

SKU: VL-PIR005
$17.00inc. GST
● Only 20 left

Warranty: 1 year

Product details

PIR Sensor Switch is suitable for aluminium profiles with plastic diffuser and inner height 6-20 mm.

Suitable to use with for LED Profile with inner profile height 6-20 mm.

  • indoor: interior design, furniture (kitchen cabinets, wardrobes and cupboards), stairs, exhibitors, advertisement, hotels, work stations, (hardly accessible - shaded spots)
  • indoor and outdoor (profile is not waterproof, not to be applied if directly exposed to weather conditions)
  • Width: 10mm
  • Voltage: 12V-24V
  • Length: 52mm
  • Max Current: 8 Amps
  • Load Capacity: 96 W (12 V) / 192 W (24 V)
  • Standby Time: about 30S

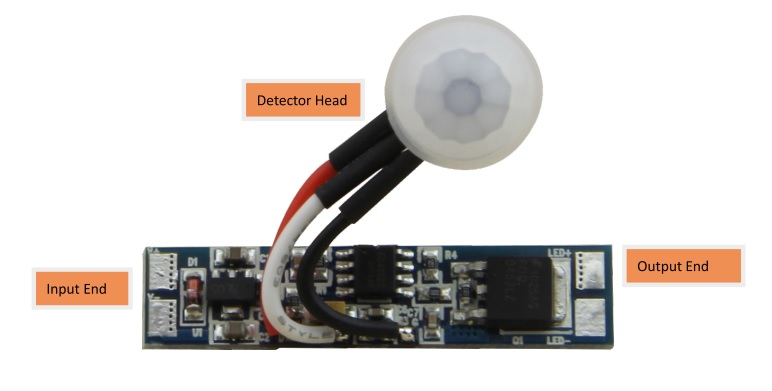

PIR sensor switch board with its detector head: input end on the left, output end on the right

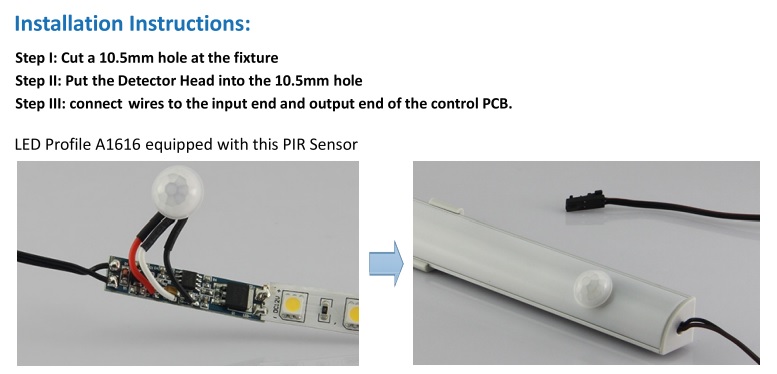

PIR sensor switch install: drill a 10.5 mm hole, push the detector head in, wire the 12V or 24V driver to V+ and V- and the LED strip to LED+ and LED-; board 52 x 10 mm, fits profiles 6 to 20 mm inside
