NEON Flex Mini (12/24V - 9.6/14.4W) IP67
Warranty: 1 year
Product details
The price is per 1 metre of LED Neon Flex. 1 quantity = 1 metre. Up to 30 metres available in a single reel.
LED Neon Flex - Mini Range (12 V & 24 V) - ultra-flexible, shatterproof silicone strip with a 180° bend radius. Suitable for signage, retail displays, bars, clubs, and architectural lighting. Designed for both indoor and outdoor use with IP67 waterproof protection and UV-stabilised housing.
Key Features
- Seamless, dot-free illumination
- Ultra-flexible 180° bend design
- Available in 12 V and 24 V models
- Durable silicone housing (UV and impact resistant)
- Waterproof IP67 - suitable for outdoor applications
Available Colours
- 12 V: Cool White 6000 K, Neutral White 4500 K, Warm White 3000 K, Red, Pink, Green, Blue, Yellow
- 24 V: Cool White 6000 K, Neutral White 4500 K, Warm White 3000 K, Red, RGB
Specifications - 12 V Single Colour
- LED Model: SMD 2835 (120 LED/m)
- Brightness: 20 - 22 lm/m

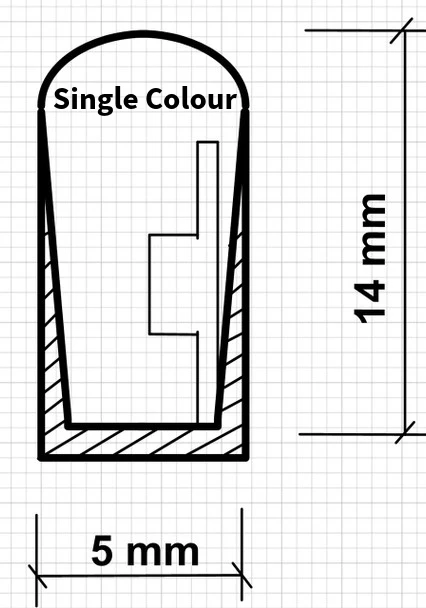

- Size: 5 × 14 mm
- Cut point: every 2.55 cm
- Input Voltage: DC 12 V
- Power: 9.6 W/m
- Lifespan: > 30 000 hours
- Operating Temperature: −20 °C to +50 °C
- IP Rating: IP67 (waterproof)
Specifications - 24 V Single Colour
- LED Model: SMD 2835 (120 LED/m)
- Brightness: 20 - 22 lm/m
- Size: 5 × 12 mm
- Cut point: every 5 cm
- Input Voltage: DC 24 V
- Power: 9.6 W/m
- Lifespan: > 30 000 hours
- Operating Temperature: −20 °C to +50 °C
- IP Rating: IP67 (waterproof)
Specifications - 24 V RGB
- Series: IP67 Neon Side View
- LED Model: SMD 5050 (60 LED/m)
- Brightness: 200 lm/m

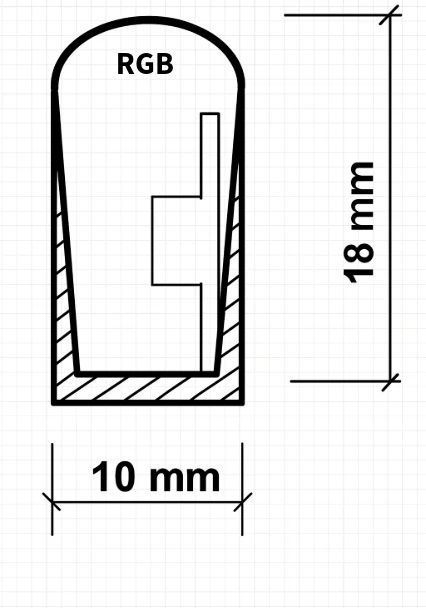

- Size: 10 × 18 mm
- Cut point: every 10 cm
- Input Voltage: DC 24 V
- Power: 14 W/m
- Lifespan: > 30 000 hours
- Operating Temperature: −20 °C to +50 °C
- IP Rating: IP67 (waterproof)
Powering Longer Runs
- For runs longer than 6 m (12 V) or 12 m (24 V), power from both ends to maintain even brightness.
- When powered from both ends, the 24 V version can reach approximately 12 m + 12 m + ≈ 6 m extra, giving up to ≈ 30 m total with consistent light.
- Use adequately sized cable to minimise voltage drop.
Accessories
Selecting the Right LED Driver
Use our Power Supply Calculator below to automatically find the correct driver for your strip length and wattage, no manual calculations needed.
Need Help or a Custom Setup?
We can solder custom wires directly to your LED Neon Flex, prepare pre-cut lengths to your measurements, and supply the correct power supply, fully tested and ready to install. Our team can handle all calculations for you. Simply call us or get in touch online for quick assistance.
