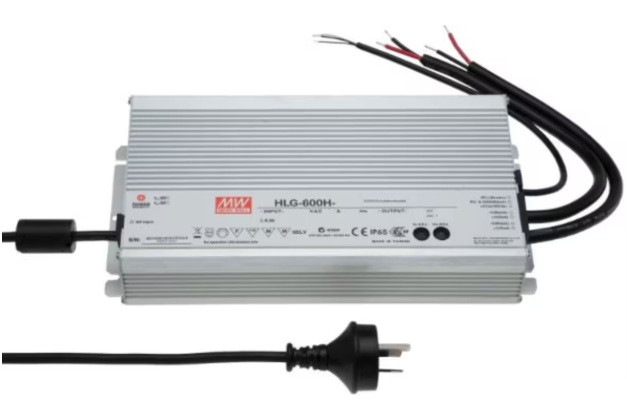

Mean Well HLG-600 LED Driver IP67 24V

The Mean Well HLG-600H-24 is a high-power constant voltage LED driver, built for large-scale LED installations and industrial applications. With an impressive 600W output, active PFC, and a fully isolated aluminium housing, it ensures maximum performance, reliability, and safety in both indoor and outdoor environments.

✔ 24V DC constant voltage output - 600W (25A) capacity
✔ Universal AC input (90-305V AC) with built-in active PFC
✔ Fully isolated aluminium case - excellent heat dissipation & durability
✔ Ingress protection IP65/67 - suitable for dry, damp, and wet locations
✔ Certified to international safety & EMC standards
✔ Supplied with SAA-approved 1.8m flex & plug
✔ Ideal for large LED strip installations, signage, architectural lighting, and industrial projects

Specifications

Model: HLG-600H-24

Output Voltage: 24V DC

Output Current: 25A

Output Power: 600W

Input Voltage: 90-305V AC (full range, 47-63Hz)

Power Factor: Built-in active PFC

Case Type: Fully isolated aluminium enclosure

IP Rating: IP65 / IP67 (depending on wiring configuration)

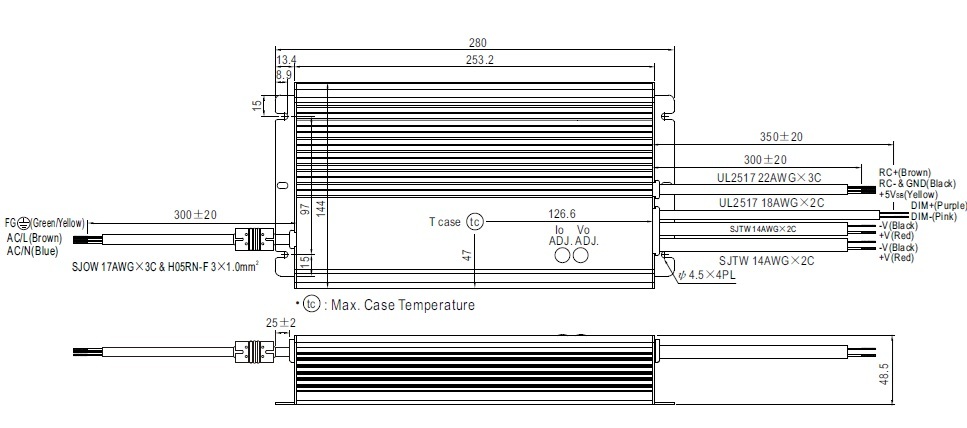

Dimensions: 280 × 144 × 48.5 mm

Weight: ~3.3 kg per unit

MTBF: 192,000 hrs (MIL-HDBK-217F, 25°C)

Safety Compliance: EN61347-1, EN61347-2-13, UL8750, EN62384

EMC Compliance: EN55015, EN61000 series

Connection: SAA-approved 1.8m flex & plug

A heavy-duty 24V 600W LED driver from Mean Well, perfect for industrial-scale LED lighting, signage, and architectural projects requiring maximum reliability and efficiency
