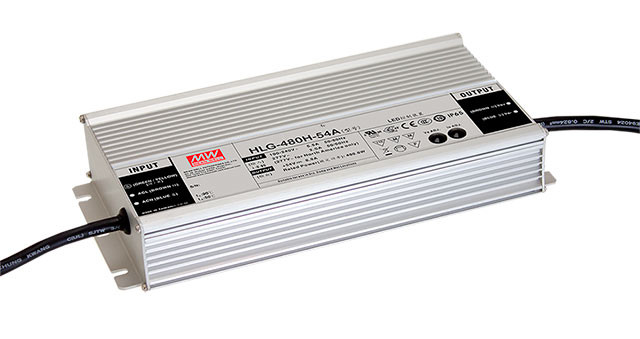

Mean Well HLG-480 LED Driver IP67 24V

The Mean Well HLG-480H-24 is a high-power constant voltage LED driver, designed for demanding commercial and industrial applications. With 480W output, active PFC, and a fully isolated aluminium case, it delivers reliable and efficient performance even in harsh environments.

✔ 24V DC constant voltage output - up to 480W (20A)
✔ Universal AC input (full range) with active PFC
✔ Fully isolated aluminium case for heat dissipation and durability
✔ Adjustable & dimmable (model [AB]: resistance, 0-10V, or PWM dimming)
✔ High ingress protection (IP65/IP67) - suitable for indoor and outdoor use
✔ MTBF: 207,900 hrs (MIL-HDBK-217F @ 25°C)
✔ Certified to international safety & EMC standards
✔ Supplied with SAA-approved 1.8m flex & plug
✔ Ideal for large LED strip installations, signage, and industrial lighting

Specifications

Model: HLG-480H-24AB

Output Voltage: 24V DC

Output Current: 20A

Output Power: 480W

Input Voltage: Universal AC input (90-305V AC, 47-63Hz)

Power Factor: Active PFC built-in

Case Type: Aluminium, fully isolated

Dimming: Adjustable / Dimmable (resistance, 0-10V, PWM signal)

IP Rating: IP65 / IP67 (depending on wiring configuration)

MTBF: 207,900 hrs (MIL-HDBK-217F, 25°C)

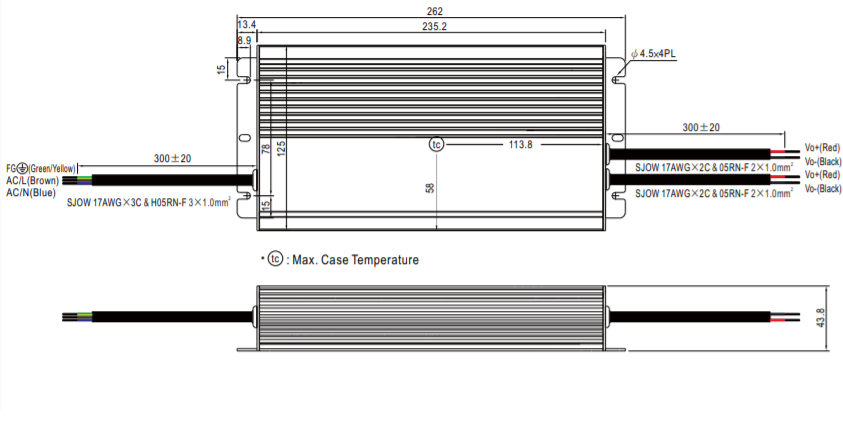

Dimensions: 262 × 120 × 43.8 mm

Weight: 1.48 kg

Safety Compliance: EN61347-1, EN61347-2-13, UL8750, EN62384

EMC Compliance: EN55015, EN61000 series

Connection: SAA-approved 1.8m flex & plug

A heavy-duty 24V 480W LED driver from Mean Well, perfect for large-scale LED projects where high reliability, outdoor rating, and dimming flexibility are required.

View full product details on Mean Well site
