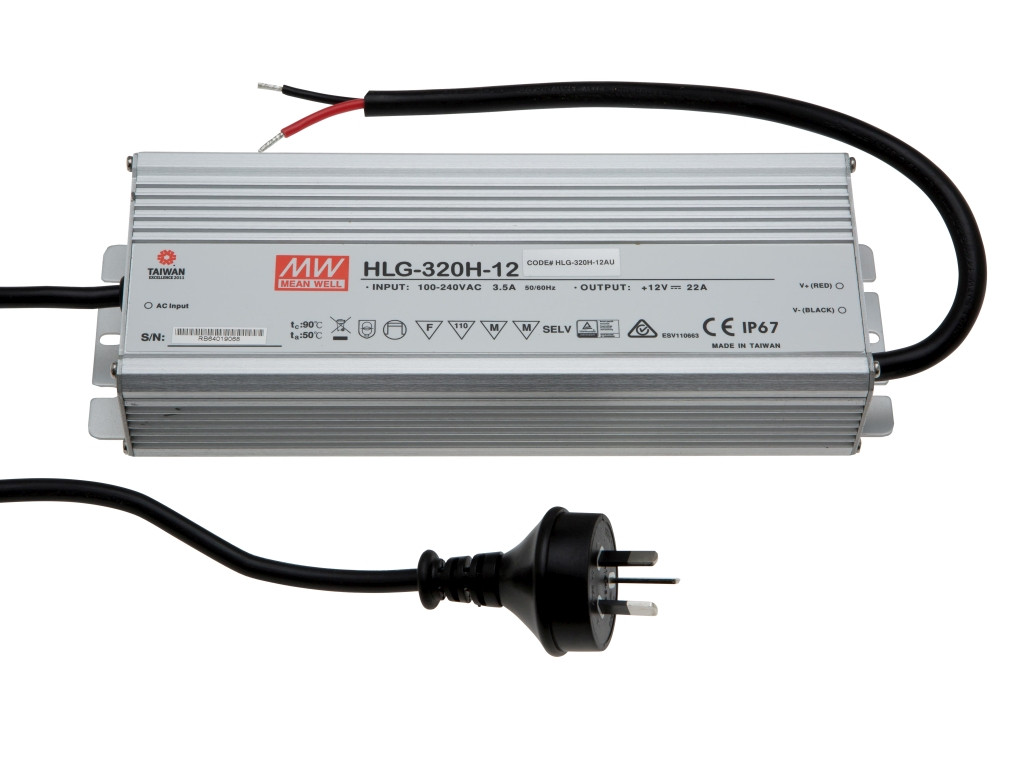

Mean Well HLG-320 LED Driver IP67 12V

The Mean Well HLG-320H-12 is a robust constant voltage LED driver designed for high-power LED applications. With a fully isolated aluminium housing, wide AC input range, and IP65/67 rating, it is built for reliable operation in both indoor and outdoor environments.

✔ 12V DC constant voltage output - 264W (22A) power capacity
✔ Universal AC input (full range) with built-in active PFC
✔ Fully isolated aluminium case for durability and efficient heat management
✔ Ingress protection IP65/67 - suitable for dry, damp, and wet locations
✔ High reliability - MTBF 157,100 hrs (MIL-HDBK-217F @ 25°C)
✔ Certified to international safety and EMC standards
✔ Supplied with SAA-approved 1.8m flex & plug
✔ Ideal for large 12V LED strip installations, signage, and industrial lighting projects

Specifications

Model: HLG-320H-12

Output Voltage: 12V DC

Output Current: 22A

Output Power: 320W

Input Voltage: 90-305V AC (full range, 47-63Hz)

Power Factor: Active PFC built-in

Case Type: Fully isolated aluminium enclosure

IP Rating: IP65 / IP67 (depending on wiring configuration)

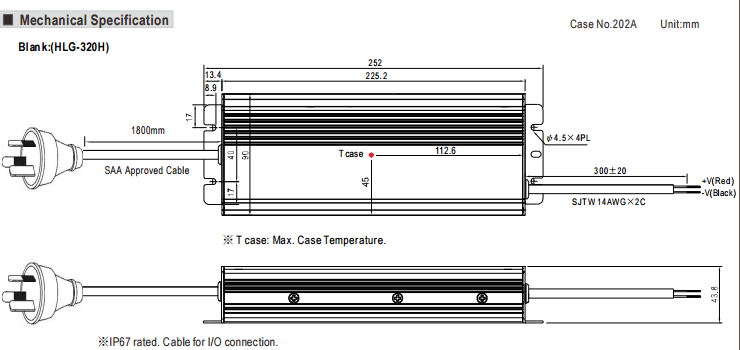

Dimensions: 252 × 90 × 43.8 mm

Weight: 2.12 kg per unit

MTBF: 157,100 hrs (MIL-HDBK-217F, 25°C)

Safety Compliance: EN61347-1, EN61347-2-13, UL8750, EN62384

EMC Compliance: EN55015, EN61000 series

Connection: SAA-approved 1.8m flex & plug

A durable, high-performance 12V 320W LED driver from Mean Well, engineered for demanding indoor and outdoor LED applications requiring reliability and safety.
