Mean Well HLG-150H LED Driver IP67 12V

The Mean Well HLG-150H-12 is a constant voltage LED driver designed for reliable, efficient, and long-lasting LED lighting. With 150W output power, high efficiency up to 94%, and a rugged IP65/IP67-rated aluminium housing, it is suitable for both indoor and outdoor applications, including LED strip lighting, signage, and street lighting.

✔ 12V DC constant voltage output - 150W (12.5A) capacity
✔ Universal AC input (up to 305V AC) with active PFC
✔ High efficiency up to 94% - energy-saving performance
✔ Three-in-one dimming function (resistance, 0-10V, PWM signal)
✔ Comprehensive protections: short circuit, overcurrent, overvoltage, overtemperature
✔ Cooling by free air convection - silent and reliable
✔ Ingress protection IP65/IP67 - suitable for indoor and outdoor use
✔ Certified to international safety and EMC standards
✔ Ideal for LED lighting projects, street lighting, and industrial installations

Specifications

Model: HLG-150H-12

Output Voltage: 12V DC

Output Current: 12.5A

Output Power: 150W

Input Voltage: 90-305V AC (full range, 47-63Hz)

Efficiency: Up to 94%

Dimming: Three-in-one dimming (resistance, 0-10V, PWM)

Protections: Short circuit, overcurrent, overvoltage, overtemperature

Cooling: Free air convection (no fan)

Case Type: Fully isolated aluminium housing

IP Rating: IP65 / IP67 (depending on wiring configuration)

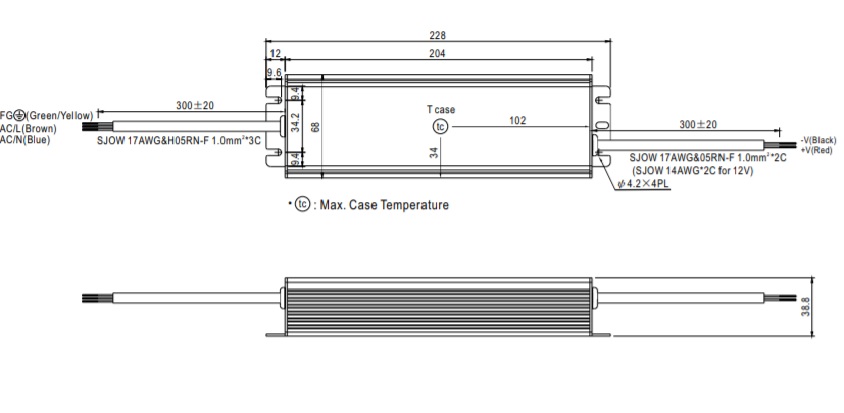

Dimensions: 228 × 68 × 38.8 mm

Safety Compliance: EN61347-1, EN61347-2-13, UL8750, EN62384

EMC Compliance: EN55015, EN61000 series

A premium 12V 150W dimmable LED driver from Mean Well, combining high efficiency, durability, and dimming flexibility, ideal for both commercial and outdoor lighting projects.
