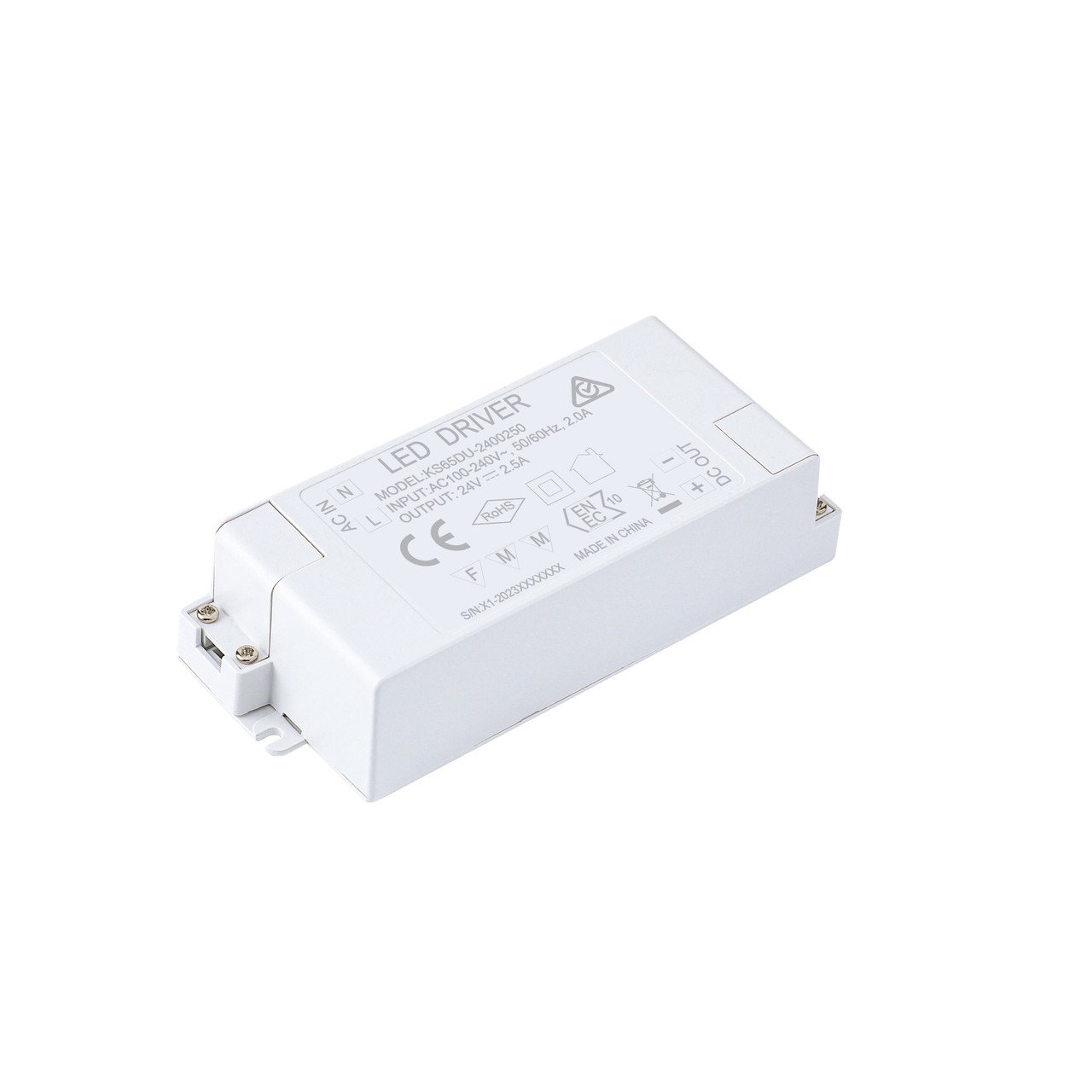

LED Driver 60W / 2.5A / 24V

24V 2.5A Hard-Wired Power Supply (60W, IP20)

This high-quality 60W indoor power supply is designed for reliability, safety, and ease of installation. Perfect for powering 24V LED strips, LED systems, CCTV cameras, and other compatible devices.

✔ Hard-wired screw terminal design for secure connections
✔ Lightning surge protection for added reliability
✔ Multiple safety protections (short circuit, overcurrent, overvoltage, overload)
✔ Compact IP20 enclosure for indoor use
✔ Standardized module design for easy installation and maintenance
✔ 12-month warranty

Specifications

Specifications

• Output Voltage: 24V DC ±0.5V

• Output Current: 2.5A max

• Output Power: 60W

• Input Voltage: 100–240V AC (47–63Hz)

• Input Current: ≤0.3A

• Efficiency: ≥90% @ 120V AC

• Inrush Current: <60A @ 230V AC (350µs)

• Standby Power: ≤0.21W @ 115V AC

• Line & Load Regulation: ±5%

• Operating Temp: -30°C ~ +50°C

• Storage Temp: -40°C ~ +80°C

• Humidity: 20–90% RH (non-condensing)

• Insulation Resistance: >100MΩ

• Safety Certificates: SAA, UL, CE, RoHS

• IP Rating: IP20 (indoor, non-waterproof)

• Weight: 460g
