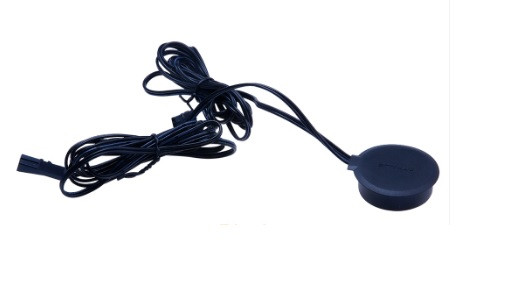

Invisible Touch Dimmer Switch for LED - Recessed Behind Cabinet

Overview

A compact, recessed touch dimmer switch designed for hidden installation behind non-metallic surfaces like wood or MDF. Provides seamless on/off and dimming control of 12V/24V LED lights with a simple touch on the surface above the sensor, no visible switch required.

Key Features

• touch sensor with built-in dimmable function

• Designed for concealed mounting in joinery or cabinetry

• Activates through non-metallic materials (12-13mm thick)

• Smooth on/off and brightness adjustment with a single touch

• Compatible with most constant-voltage 12V or 24V LED drivers

• Minimalist aesthetic, no exposed controls

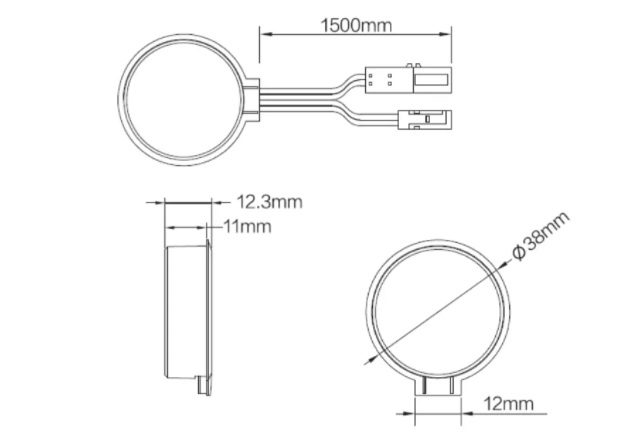

• 1500mm cable included for flexible installation

Installation & Operation

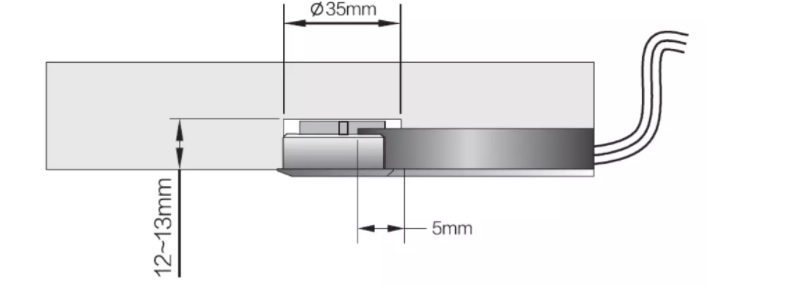

Mount the sensor behind a non-metallic surface (e.g., MDF, timber, acrylic).
The unit is activated by a light touch on the top surface directly above the sensor, no openings or visible components required.

⚠️ Important:

• This is a top-activation sensor - it is not designed to be touched from underneath.

• Not suitable for use behind metal or conductive surfaces.

• Recommended surface thickness: 12-13mm for optimal performance.
