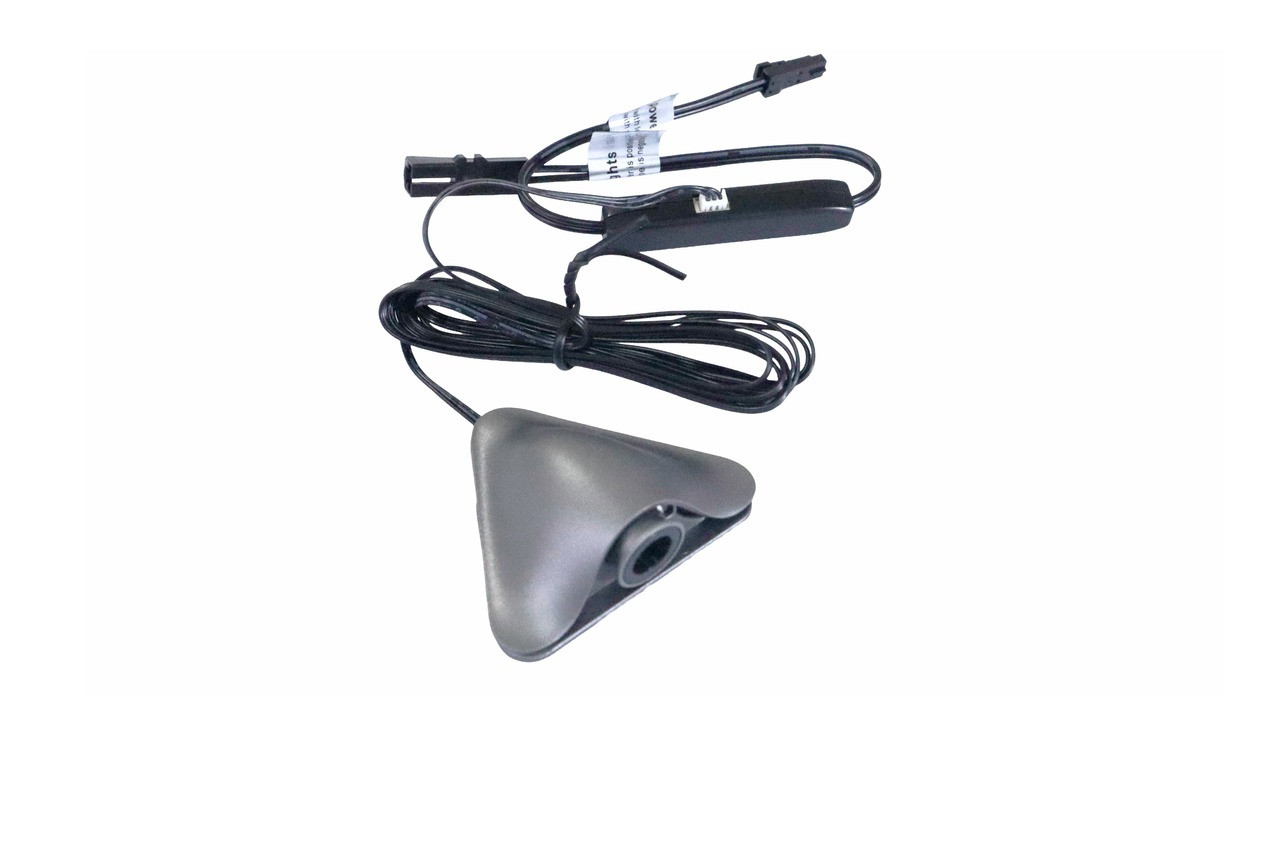

Hand-Wave Sensor Switch Surface Mounted
Warranty: 1 year
Product details
The S1803 Wired Hand-Swipe Sensor Switch is a modern, touch-free solution designed for convenient and hygienic lighting control. Using advanced infrared sensing technology, it allows you to turn lights on/off and adjust brightness simply by swiping your hand within 50-80 mm of the sensor. Perfect for kitchens, wardrobes, display cabinets, and other applications where effortless and safe lighting control is needed.
Features
Touch-Free Operation: Control your LED lights with a simple hand swipe, no physical contact required.
Dimming Function: Adjust brightness easily to create the perfect lighting atmosphere.

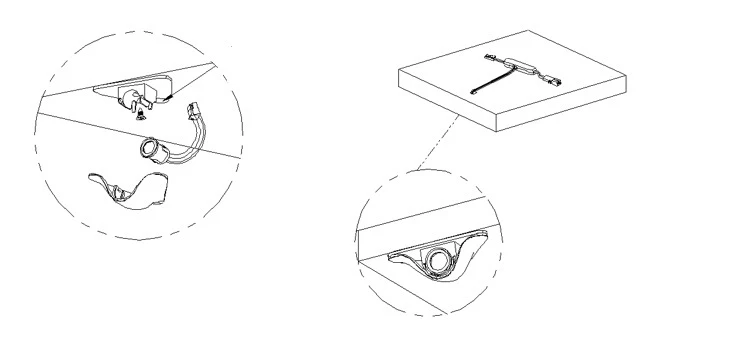

Flexible Installation: Supports both surface-mounted and recessed installation, making it suitable for various cabinet or furniture designs.
Modern Design: A small, low-profile housing that suits most cabinets.
Energy Efficient: Ultra-low standby power consumption (<0.1W).
Safe & Reliable: Built with high-quality ABS+PC materials for durability and safety.
Technical Specifications
Product Model: S1803
Input Voltage: 12/24V DC
Output Voltage: 12/24V DC
Maximum Load Power: 30W
Standby Power Consumption: <0.1W
Sensing Distance: 50-80 mm
Sensor Head Material & Colour: ABS + PC, black / galaxy grey
Dimensions: Φ14 × 16 mm
Cut-Out / Depth Size: Φ12 × 15 mm
Output Cable: 28AWG, 1500 mm length
Use indoors, check parts often, don’t repair yourself, avoid water.
