Home  /  Hand-Wave IR Sensor Switch
Hand wave IR sensor switch for LED lighting with cable for touchless on off control

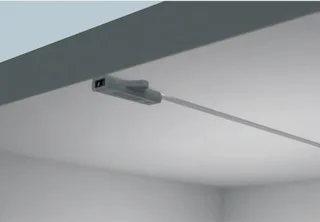

Hand wave IR sensor switch for LED lighting with cable for touchless on off controlIR sensor switch size: 58 mm long, 33 mm over the screw ears, 8 mm thick, two 4 mm holes 23 mm apart, IR window on one end, two 1.5 m leads with mini DC plugsHand wave sensor switch installed under cabinet for touchless LED strip lighting control

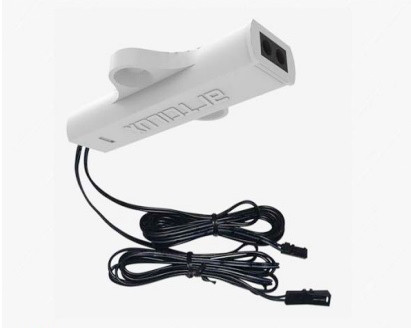

Hand-Wave IR Sensor Switch

SKU: VL-S1003
$13.40inc. GST
● Only 19 left
Datasheet

Warranty: 1 year

Product details

Waving IR Sensor Switch: It can control 12V DC LED lighting products, such as LED cabinet lights, LED rigid bar, LED strip lights. It can react sensitively within 50 mm.

Parameters:

Input voltage: 12V DC

Max load: 60W

Cable length 1500mm

Wave your hand in front of switch and the light turns ON/OFF (waving distance 50 mm)

IR sensor switch size: 58 mm long, 33 mm over the screw ears, 8 mm thick, two 4 mm holes 23 mm apart, IR window on one end, two 1.5 m leads with mini DC plugs

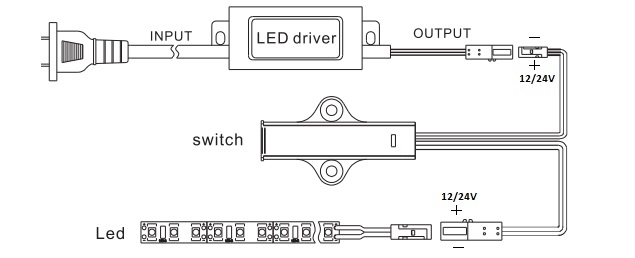

IR sensor switch wiring: LED driver, 12V or 24V, to the sensor switch by mini DC plugs, then on to the LED strip; the door or a hand passes within 50 mm of the IR window
