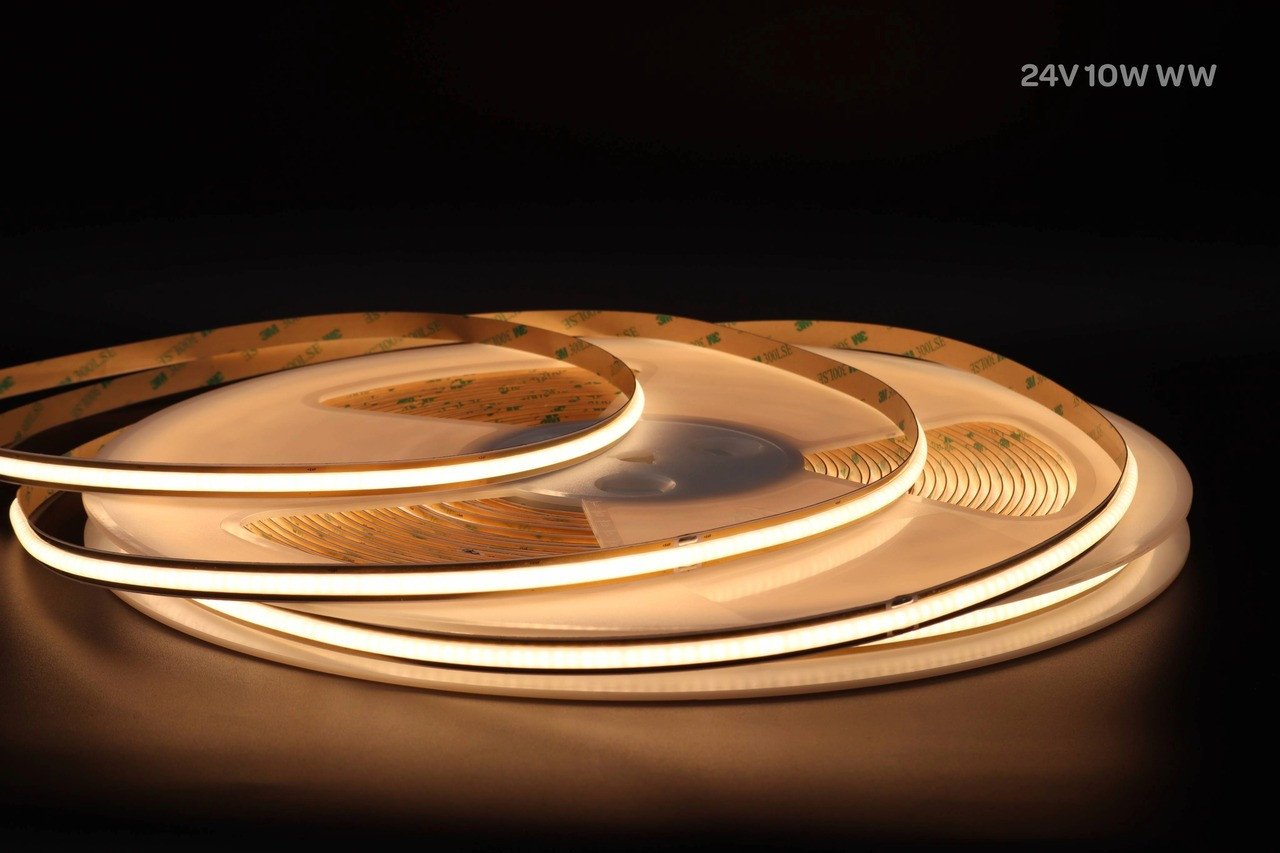

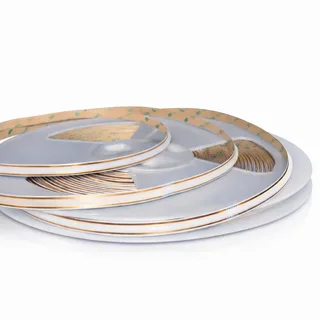

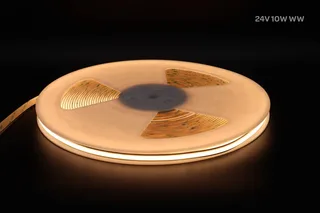

Free-Cut SmoothLine Single Colour Strip (24V - 10W) Non-Waterproof
Product details
The price is per 1 metre of LED strip. 1 quantity = 1 metre. Up to 30 metres available in a single reel.
Free-Cut SMD 2022 SmoothLine LED Strip (24 V - 10 W/m) - premium dotless strip featuring next-generation SMD 2022 LEDs for outstanding efficiency, reliability, and uniform light. The “free-cut” design allows cutting anywhere along the strip, ideal for custom lengths, slim profiles, and continuous lighting applications such as under-cabinet, furniture, retail, and architectural installations.
Key Features
- Seamless, dot-free illumination
- Cuttable anywhere along the strip (no fixed cutting points)
- Advanced SMD 2022 LED technology for high efficiency and stability
- High colour rendering (CRI 90)
- 24 V constant-voltage operation
- Flexible PCB with 3M self-adhesive backing
Available Colours
- Warm White 3000 K
- Natural White 4000 K
- Cool White 6000 K
Specifications
- LED Model: SMD 2022
- Input Voltage: DC 24 V
- Power: 10 W per metre
- Dimensions: Width 10 mm × Height 2 mm
- Cutting: Free-cut (cuttable anywhere)
- Lifespan: > 50 000 hours
- Operating Temperature: −20 °C to +50 °C
- IP Rating: IP20 (non-waterproof)
- Viewing Angle: 180°
- CRI: 90
- Adhesive: 3M self-adhesive tape
- Max single-end run: 10 m
Powering Longer Runs
- For runs longer than 10 m, power from both ends to maintain even brightness.
- Use adequately sized cable to minimise voltage drop and ensure consistent light output.
Selecting the Right LED Driver
Use our Power Supply Calculator below to automatically find the correct driver for your strip length and wattage, no manual calculations needed.
Need Help or a Custom Setup?
We can solder custom wires directly to your LED strips, prepare pre-cut lengths to your measurements, and supply the correct power supply, fully tested and ready to install. Our team can handle all the calculations for you. Simply call us or get in touch online for quick assistance.
