Corner LED Profile (Silver, White, Black) PA-04 Type 1
Diffuser only means the diffuser cover on its own: no aluminium channel and no end caps.
Warranty: 1 year
Product details
This high-quality aluminium corner LED profile is designed to house LED strips, providing a neat, modern and professional finish. Perfect for both residential and commercial projects, it enhances light diffusion and ensures durability.
Package includes:
- Aluminium profile: Silver in 1m, 2m or 3m; White and Black in 3m
- Diffuser: Clear, Semi-frosted, Frosted, Square semi-frosted or Square frosted (Square in 3m only)
- 2 end caps: quarter-round, or square with the Square covers
- 2 mounting brackets per metre
Square semi-frosted and Square frosted are flat-sided covers with a square corner, the cover we used to sell as PA-45. With one fitted, the channel becomes a neat 16 x 16mm square box. Both come in 3m only, with a 3m channel or on their own.
Options: choose No diffuser for the profile without a diffuser (end caps and brackets still included), or Diffuser only for the diffuser cover on its own, with no aluminium channel (the Square covers too). A diffuser on its own comes without end caps or brackets; if you need them, add a note to your order.
Applications: under kitchen cabinets, store shelves, inside cabinets and furniture, storage shelves, exhibition booths, interior lighting

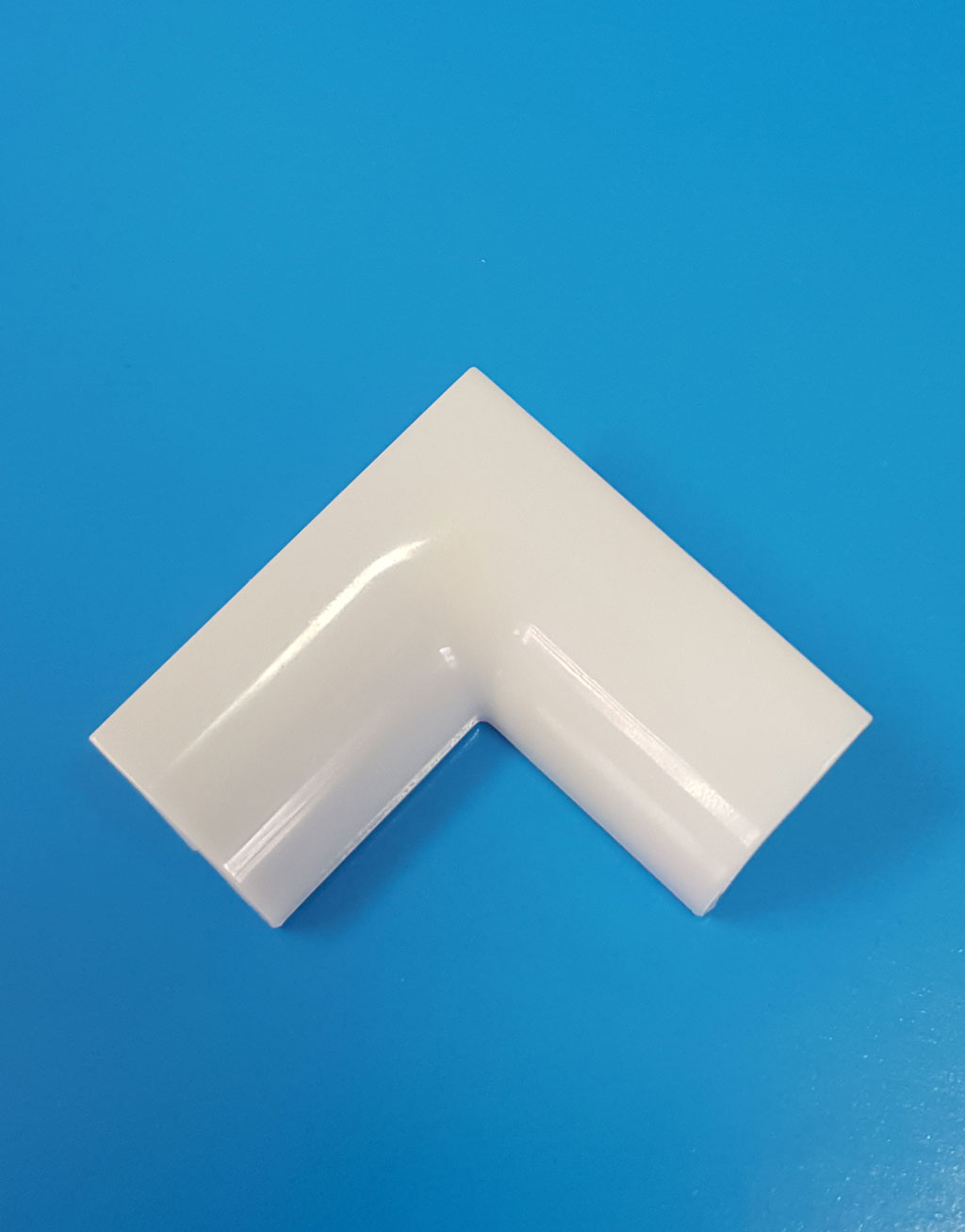

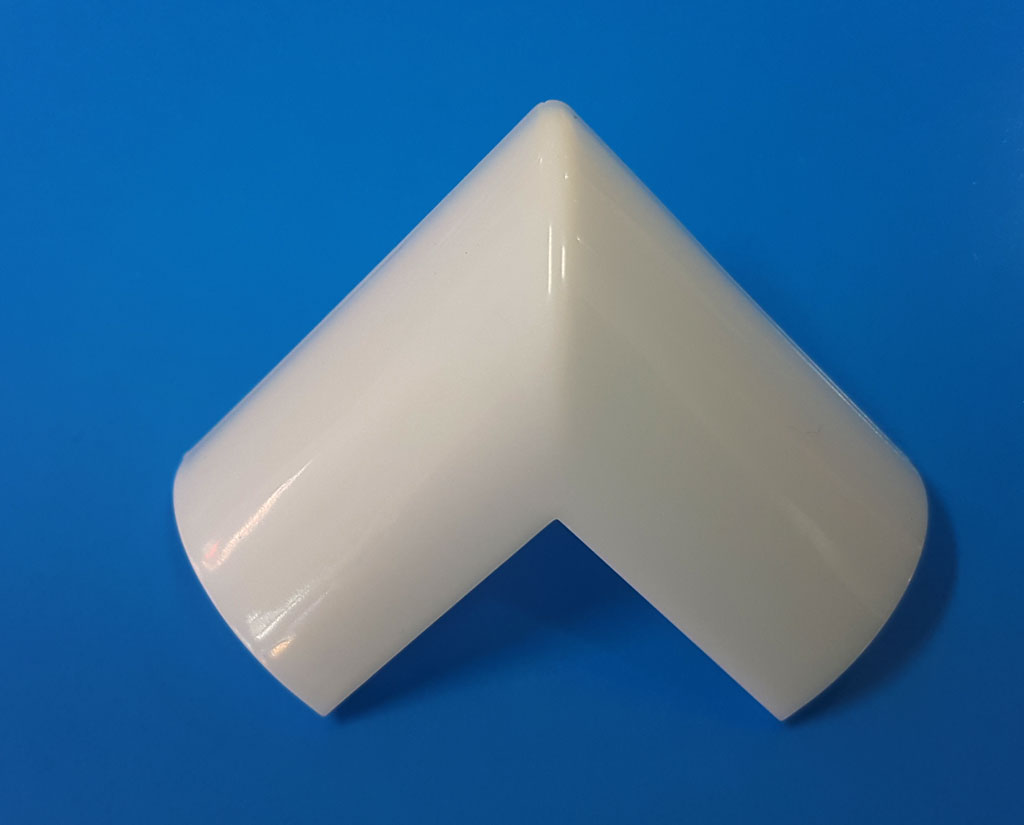

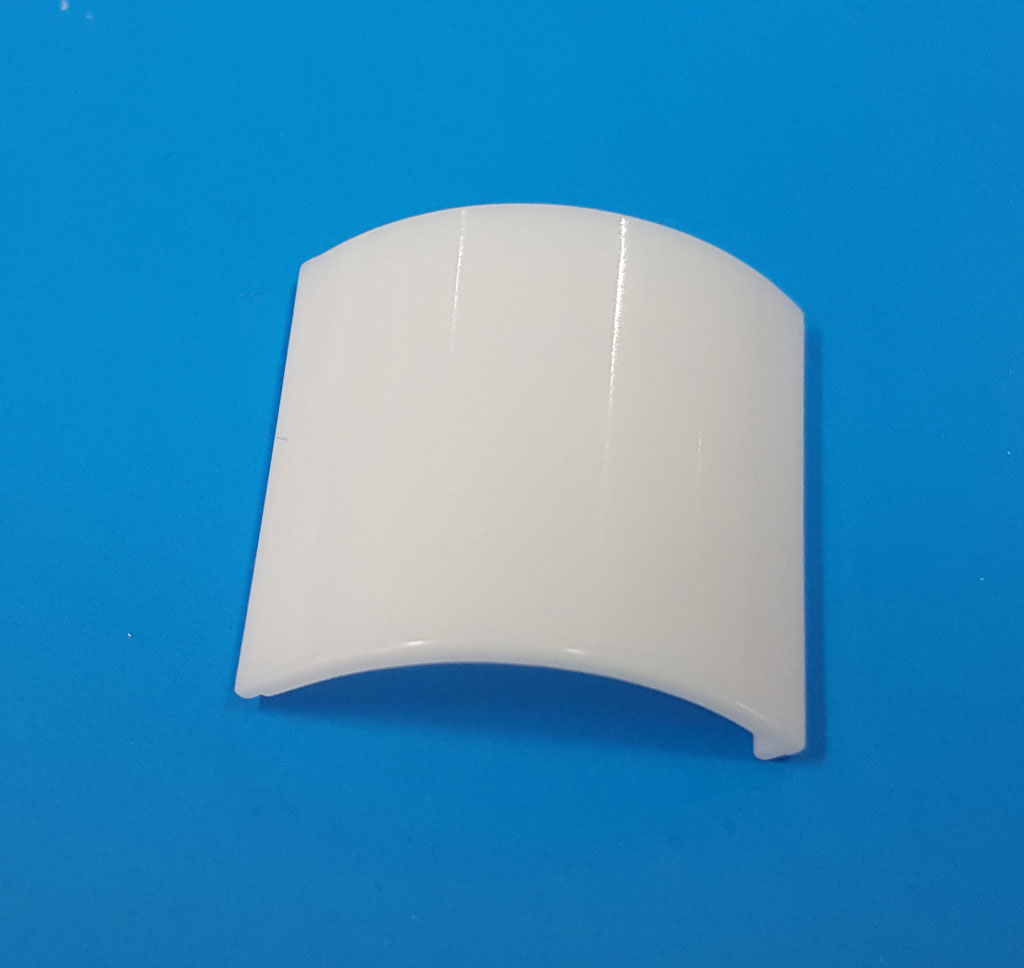

Corner and middle connectors available:
Specifications
| Size | 16 x 16mm |
|---|---|
| Inner width | 10mm |
| Lengths | 1m, 2m or 3m |
| Finishes | Silver, White or Black |
| Diffusers | clear, semi-frosted, frosted, square semi-frosted or square frosted |
| Mounting | Corner |
