Home  /  Corner LED Profile PA-03 Type 2
Corner LED profile PA-03 Type 2 kit with aluminium channel diffuser end caps and mounting accessories
Corner LED profile PA-03 Type 2 kit with aluminium channel diffuser end caps and mounting accessoriesPA-03 Type 2 corner LED aluminium profile cross section with 45 degree angled design for corner installationCorner LED profile PA-03 Type 2 illuminated showing even light output along angled aluminium channelCorner LED aluminium profile installed providing clean 45 degree linear lighting effect for cabinetryCorner LED profile with LED strip installed inside aluminium channel showing diffuser and light distribution

Corner LED Profile PA-03 Type 2

SKU: VL-PA03
From$8.70inc. GST
● In stock
Channel Colour

Diffuser only means the diffuser cover on its own: no aluminium channel and no end caps.

Length
Diffuser type

Warranty: 1 year

Product details

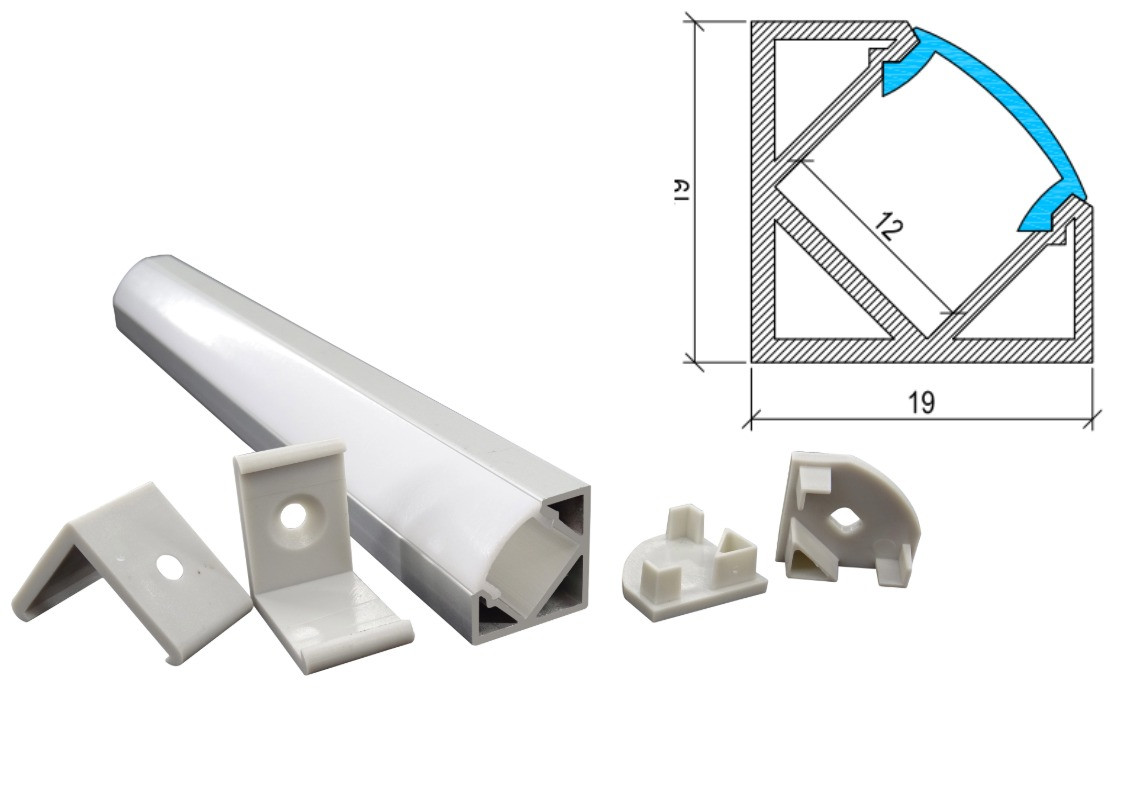

Package includes:

  • Aluminium profile (1m, 2m or 3m)
  • Diffuser (Clear, Semi-frosted or Frosted)
  • 2 end caps
  • 2 mounting brackets per metre

Options: choose No diffuser for the profile without a diffuser (end caps and brackets still included), or Diffuser only for the diffuser cover on its own, with no aluminium channel. A diffuser on its own comes without end caps or brackets; if you need them, add a note to your order.

Applications: under kitchen cabinets, store shelves, inside cabinets and furniture, storage shelves, exhibition booths, interior lighting

PA-03 corner profile  Corner profile diffuser  PA-03 corner profile with LED strip

Specifications

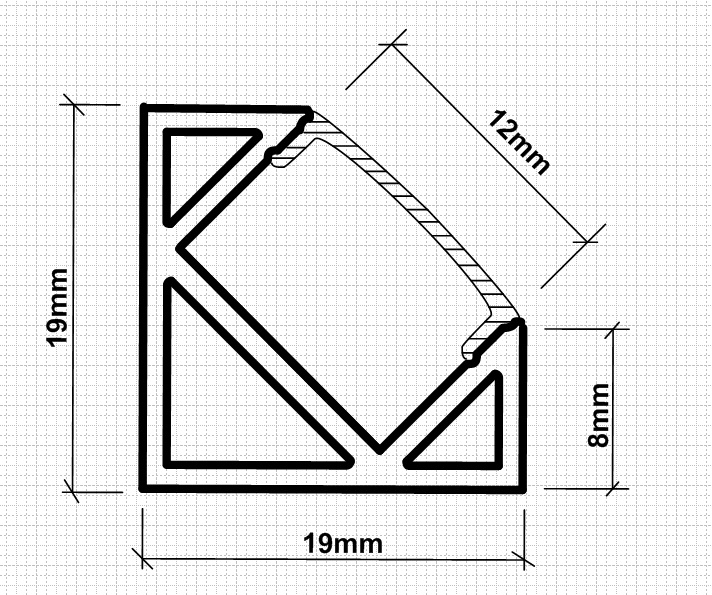

Size19 x 19mm
Inner width12mm
Lengths1m, 2m or 3m
FinishesSilver

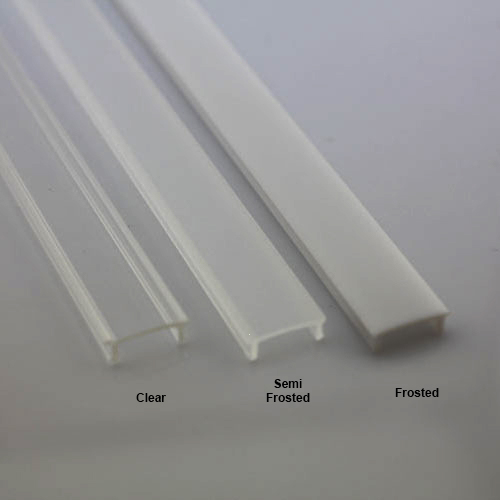

Diffusersclear, semi-frosted or frosted
MountingCorner
IP ratingIP20
