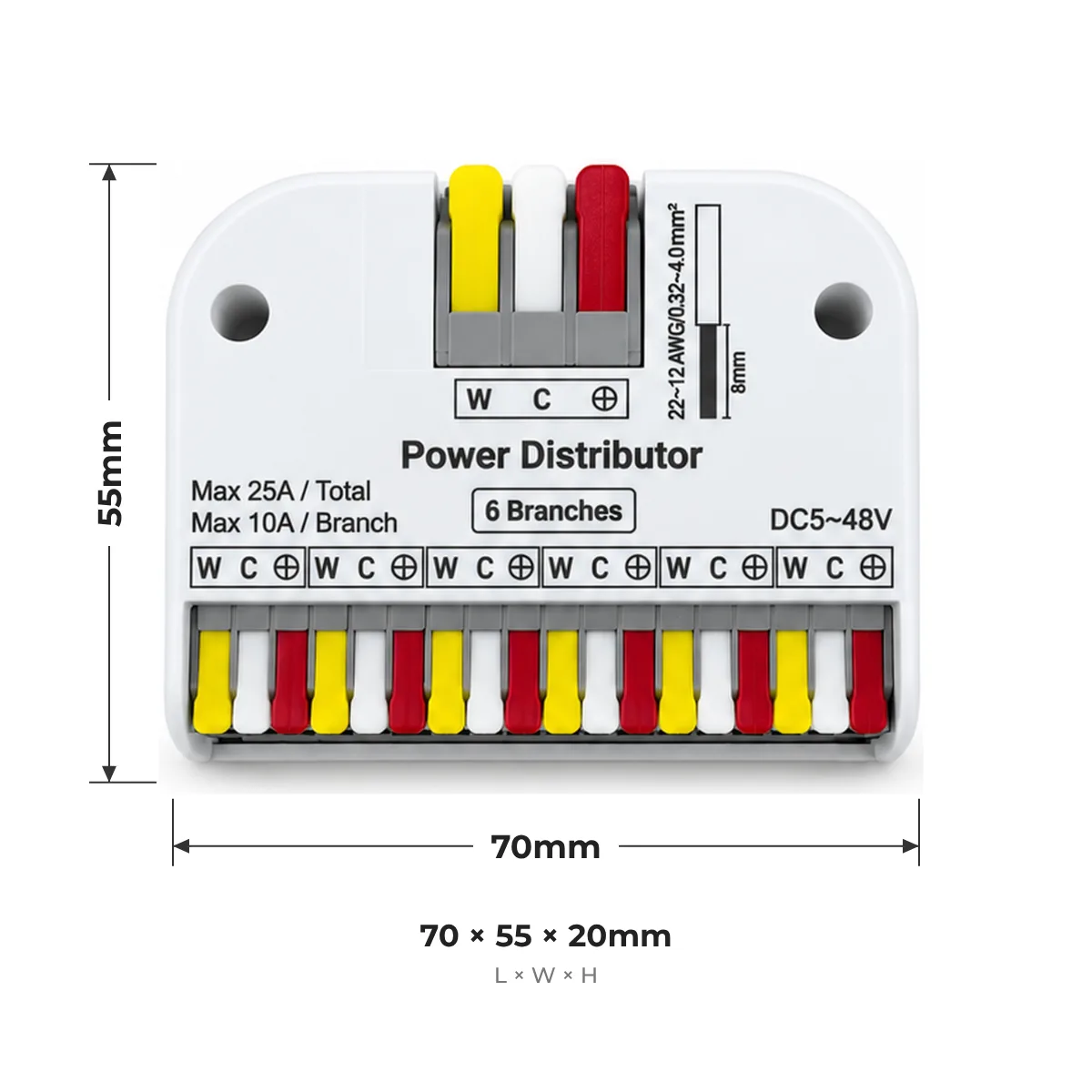

CCT 6-Way Power Distributor
One in, six out. This tool-free CCT power distributor splits a single CCT controller output into six separate tunable white outputs, making multi-zone CCT LED strip installs quick and tidy. Colour-coded lever terminals (W/C/+) mean no screws, no soldering and no guesswork. Just strip, lift, insert and close.
Features
- 1 CCT input splits to 6 CCT outputs (W/C/+)
- Suits common-anode (+V common) tunable white LED strip
- Tool-free push-in lever terminals, no screws or soldering
- Colour-coded levers: yellow (W warm), white (C cool), red (+V)
- Wide DC 5–48V range, suits 12V and 24V LED systems
- Max 25A total, max 10A per CCT output
- Accepts 22–12AWG (0.32–4.0mm²) wire
- Screw-mount housing, 2 mounting screws included
Technical Specifications
| SKU | VL-HPD-CCT |
| Input Voltage | DC 5–48V |
| Input | 1 × CCT (W/C/+) |
| Outputs | 6 × CCT (W/C/+) |
| Strip Type | CCT common anode (+V) |
| Max Total Current | 25A |
| Max Current per Output | 10A per CCT output |
| Wire Size | 22–12AWG (0.32–4.0mm²) |
| Strip Length | 8mm |
| Connection | Push-in lever, tool-free |
| Mounting | 2 × screw holes |
| Dimensions | 70 × 55 × 20mm (L × W × H) |
| IP Rating | IP20, indoor/dry use only |
Terminal Colour Code
| Lever Colour | Connection |
|---|---|
| Yellow | W (warm white channel) |
| White | C (cool white channel) |
| Red | + (common V+) |
Load Capacity
| System Voltage | Max Total (25A) | Max per Output (10A) |
|---|---|---|
| DC 5V | 125W | 50W |
| DC 12V | 300W | 120W |
| DC 24V | 600W | 240W |
| DC 36V | 900W | 360W |
| DC 48V | 1200W | 480W |
Total load must not exceed 25A across all 6 outputs, and must not exceed the power supply or CCT controller rating. Size wire gauge to the output current and run length.
Installation
- Isolate power. Strip 8mm of insulation from each wire (22–12AWG).
- Lift the lever on the terminal you are wiring.
- Push the bare wire fully in, matching colours: W (yellow), C (white), + (red).
- Close the lever and tug-test. Fix the unit with the 2 screws supplied.
Important Notes
- Do not exceed 10A on any output or 25A in total.
- DC only (5–48V). Never connect 240V AC mains.
- The red lever is + (common V+). Check wiring before powering up.
- For common-anode CCT strip only.
- IP20 rated: indoor, dry locations only. Keep away from moisture.
In the Box

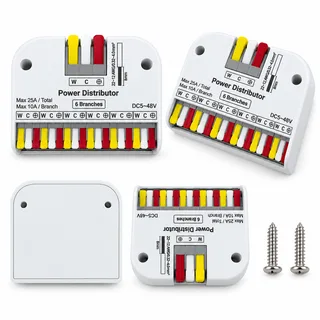

- 1 × CCT 6-Way Power Distributor
- 2 × Mounting Screws
