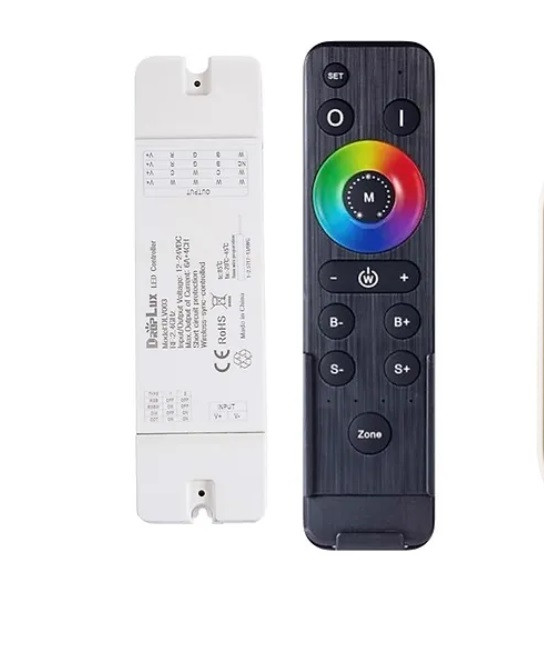

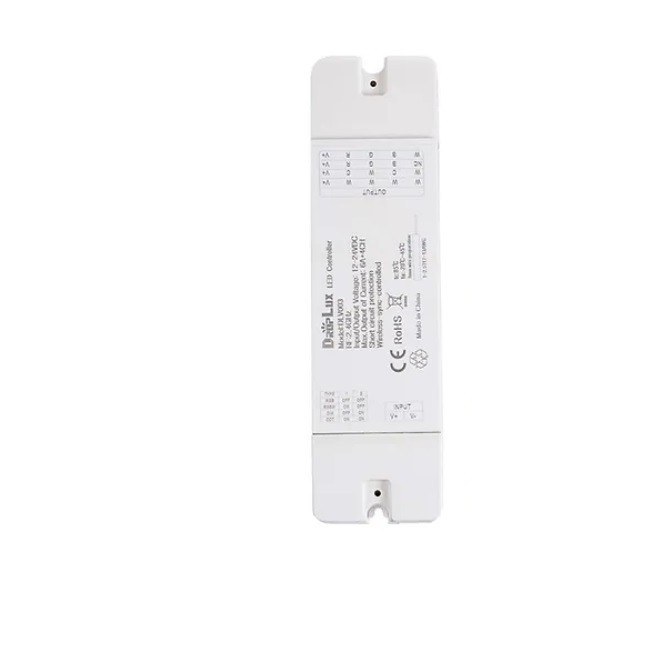

All in One LED Controller, Dimmer, CCT, RGBW (DLV003)

Remote sold separately. Works with the RGB Universal 4 Zone Remote, CCT 4 Zone Remote and Round RGB Remote.

This advanced LED controller uses PWM (Pulse Width Modulation) technology to provide smooth, precise control of constant voltage LED lights such as strips, modules, and strings. With a 4-in-1 design, it supports single color, CW+WW (dual white), RGB, and RGBW LEDs. A matching RF remote (sold separately) gives intuitive control of brightness, colors, and dynamic effects, making it ideal for flexible lighting installations.

✔ 4-in-1 Controller: controls DIM, CCT, RGB, and RGBW LED lights
✔ Maximum Load: 6A per channel, 4 channels (288W @ 12V / 576W @ 24V)
✔ Input Voltage: DC 12V or 24V constant voltage
✔ Memory Function: recalls the last used color or mode after power-off
✔ Mesh Network: sync multiple controllers wirelessly for static and dynamic modes
✔ 4-Zone Control: control up to 4 zones separately or together with a single remote
✔ RF Remote Control: no line-of-sight needed, works through obstacles
✔ Precise Adjustments: 1024 static colors, 1024 brightness levels, 100 speed levels

Controller Specifications

Technology: PWM constant voltage

Input Voltage: DC 12V / 24V

Channels: 4-channel output (common V+ and 4 outputs)

Max Load: 6A per channel (24A total)

Max Power: 288W (12V) / 576W (24V)

Functions: DIM / CCT / RGB / RGBW

Memory: Saves last mode/color after power cycle

Network: Wireless sync (mesh control across multiple receivers)

Matching remotes (sold separately)

Choose the RGB Universal 4 Zone Remote, the CCT 4 Zone Remote or the Round RGB Remote. The 4 zone remotes do:

Functions: DIM, CCT, RGB, RGBW, RGB+CCT control

Power Source: 2 × AAA batteries (not included)

Control Range: Up to 30m (RF, no line-of-sight required)

Color Control: 1024 static colors

Brightness Control: 1024 dimming levels

Speed Adjustment: 100 levels for dynamic effects

Zone Control: 4 zones (individual or group control)

Coding: Supports batch operation for pairing/unpairing controllers

A versatile 4-in-1 LED controller that takes an RF remote, perfect for residential, commercial, and architectural LED projects requiring DIM, CCT, RGB, or RGBW control
