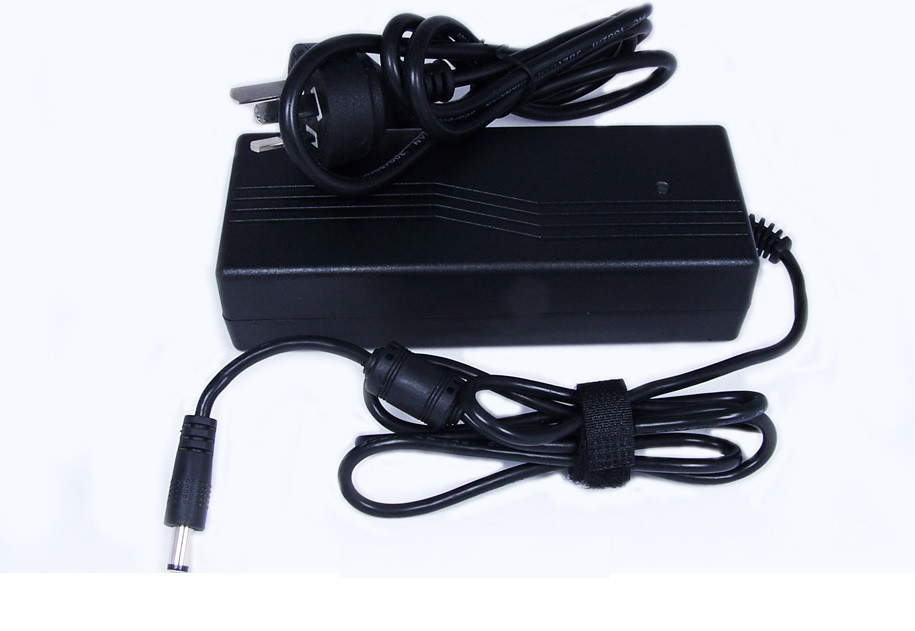

AC/DC Power Adapter 72W / 3A / 24V

Reliable desktop-style AC/DC adapter in a durable enclosed plastic case, ideal for:

LED strips and LED bars

CCTV cameras

LCD monitors

Any device requiring 24V 3A

✔ Easy to install or replace - popular in DIY kits
✔ Compact design (115 × 30 × 50 mm)
✔ Australian Safety & EMC compliant
✔ Includes 12-month warranty

Specifications

Rated Output Voltage: 24V DC

Rated Output Power: 72W

Rated Current: 3A

Rated Input Voltage: 100-240V AC

Variable Input Range: 90-264V AC

Frequency: 50/60Hz (variation: 47-63Hz)

Input Current: Depends on load and input voltage (max at rated load)

Inrush Current: ~40A (cold start at 240V AC input, 25℃ ambient)

AC Leakage Current: ≤ 0.25mA (at 240V AC input)

Efficiency: ≥ 80% (at 240V AC input and rated load)

Standby Power (no load): ≤ 0.5W

Dimensions: 115 × 30 × 50 mm

Protection Features

Overcurrent Protection: Auto recovery after overload is removed

Short-Circuit Protection: Auto recovery after fault is removed

Overvoltage Protection: Auto recovery when voltage exceeds 120%-150% of rated
