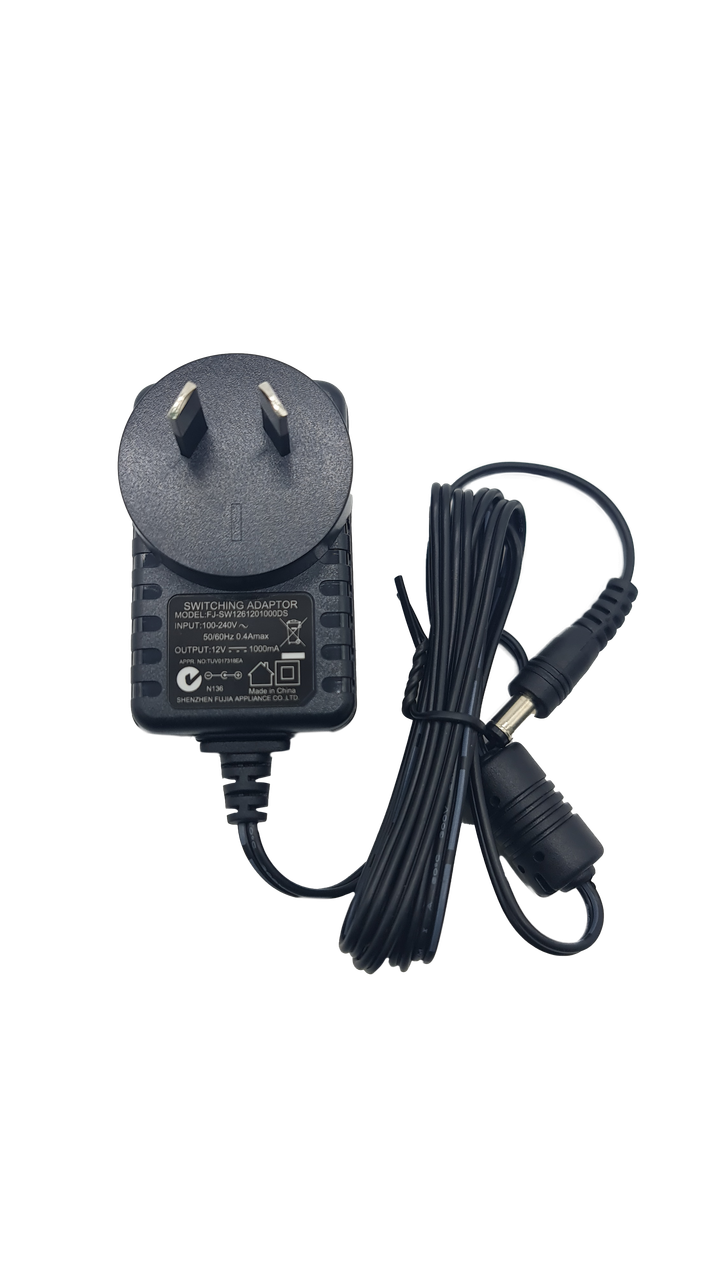

AC/DC Power Adapter 12W / 1A / 12V
Warranty: 1 year
Product details
Reliable 12V DC power supply for indoor use, perfect for LED strips, LED bars, CCTV cameras, and other 12V devices.
Easy to install/replace wall-mount design
Compact & durable enclosed plastic case
Australian Safety & EMC compliant
Comes with a 12-month warranty
DC Plug: 5.5 × 2.5 mm
Wall-mounted adapters are easy to install or replace, making them very popular for DIY kits.
This product is compliant with Australian Safety and EMC standards and comes with a 12-month warranty.
Specifications
Rated Output Voltage: 12V DC
Rated Output Power: 12W
Rated Current: 1.0A
Rated Input Voltage: 100-240V AC
Variable Input Voltage Range: 90-264V AC
Input Current: 0.35A max (at rated input/output load)
Frequency: 50/60Hz (variation: 47-63Hz)
Inrush Current: Max 60A (cold start at 240V AC input, rated load, 25℃ ambient)
AC Leakage Current: ≤ 0.25mA (at 240V AC input)
Efficiency: ≥ 70% (at 240V AC input and rated load)
Standby Power (no load): ≤ 0.5W
Protection Features
Overcurrent Protection: Auto recovery once overload condition is removed
Overvoltage Protection: Auto recovery when voltage exceeds 120%-150% of rated voltage
Manufacturer: FU JIA APPLIANCE CO., LTD
