Product details

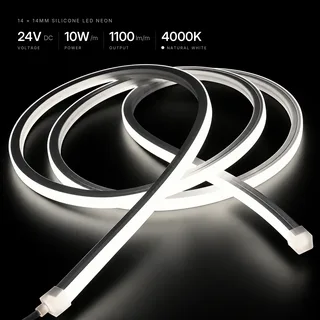

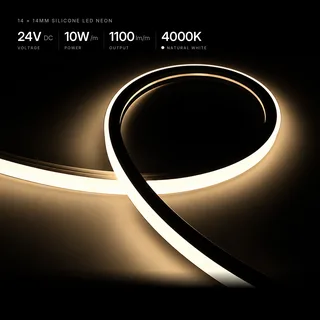

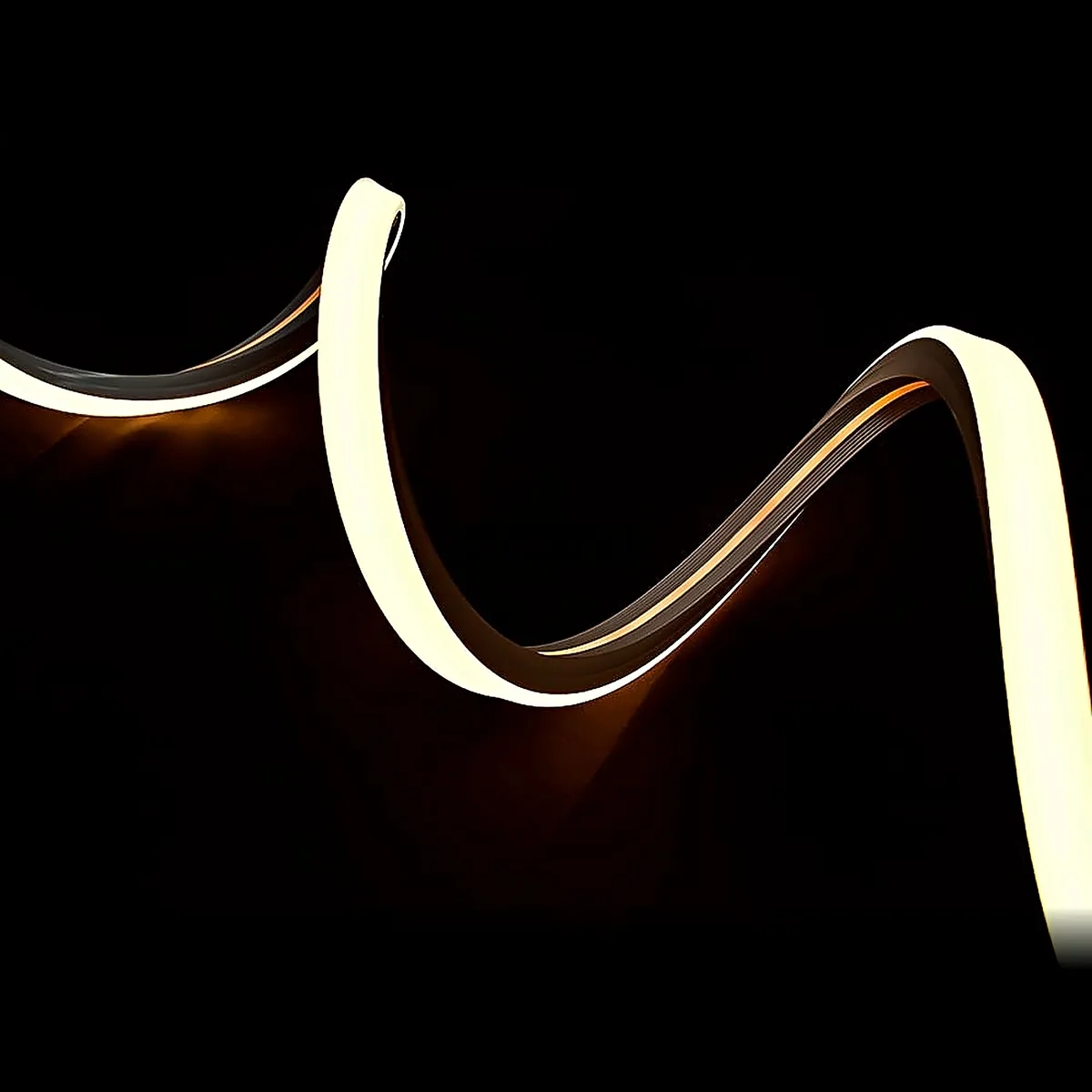

14×14mm Seamless Silicone LED Neon 24V – Top Emitting
Seamless, dotless neon glow from a compact 14×14mm square silicone profile. Light exits through the top face only, giving a clean, uniform 120° line with no visible LED dots. IP67 silicone makes it suitable for indoor and outdoor use, and the flexible body bends to follow curves, shapes and signage. Choose your colour and length.
Features
- Seamless, dotless neon glow, top emitting
- IP67 silicone, suitable for outdoor use
- Cuttable every 50mm, max run 8m
- Flexible, minimum bend radius 100mm
- 24V DC, dimmable
- Warm white, natural white, cool white or RGB
- Aluminium mounting channel, clips and end caps available
Technical Specifications
| SKU | N1414T-WW / N1414T-NW / N1414T-CW / N1414T-RGB |

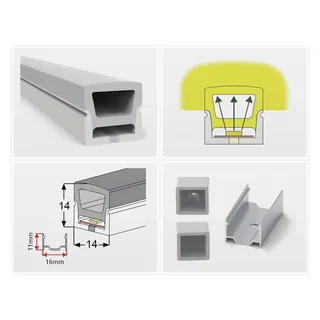

| Profile Size | 14 × 14mm (W × H) |
| Mounting Channel | 16 × 11mm (W × H) |
| Voltage | DC 24V |
| Power | 10W/m white, 15W/m RGB |
| Lumens | 1100lm/m white, 1200lm/m RGB |
| Colour | 3000K / 4000K / 6000K / RGB |
| Beam Angle | 120°, top emitting |
| IP Rating | IP67, silicone |
| Cut Length | Every 50mm |
| Max Run | 8m |
| Min Bend Radius | 100mm |
| Dimmable | Yes |
| Warranty | 1 year |
Colour Options
| Colour | SKU | Lumens | Power |
|---|---|---|---|

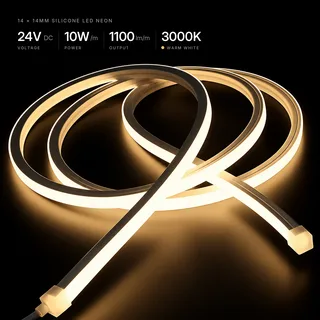

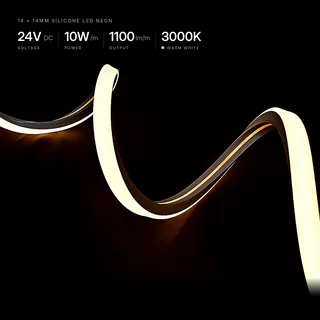

| Warm White 3000K | N1414T-WW | 1100lm/m | 10W/m |
| Natural White 4000K | N1414T-NW | 1100lm/m | 10W/m |

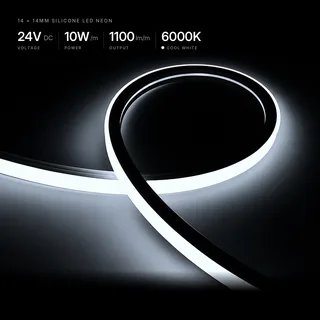

| Cool White 6000K | N1414T-CW | 1100lm/m | 10W/m |
| RGB Multi-Colour | N1414T-RGB | 1200lm/m | 15W/m |
Lumen and power values ±10%.
Wiring
- White (WW / NW / CW): connect to a 24V DC power supply (V+ / V−). Use a 24V dimmer or dimmable driver to dim.
- RGB: connect via an RGB controller (V+ / R / G / B) to a 24V DC power supply.
Installation
- Clean and dry the mounting surface.
- Fix mounting clips or aluminium channel at even spacing.
- Press the neon into the clips or channel. Keep bends to 100mm radius or more.
- Cut only at the marked points (every 50mm) and fit end caps to maintain the IP67 seal.
Important Notes
- 24V DC only. Never connect to 240V AC mains.
- Do not fold, kink or twist. Minimum bend radius 100mm.
- Cut only at marked points (every 50mm). Seal cut ends with end caps.
- Max run 8m. Size the power supply above the total load.
Accessories
- Aluminium mounting channel (16 × 11mm)
- Mounting clips
- End caps
- Feed-in end caps (cable entry)
