Home  /  12V DC Microwave Wall Mounted Motion Sensor Switch

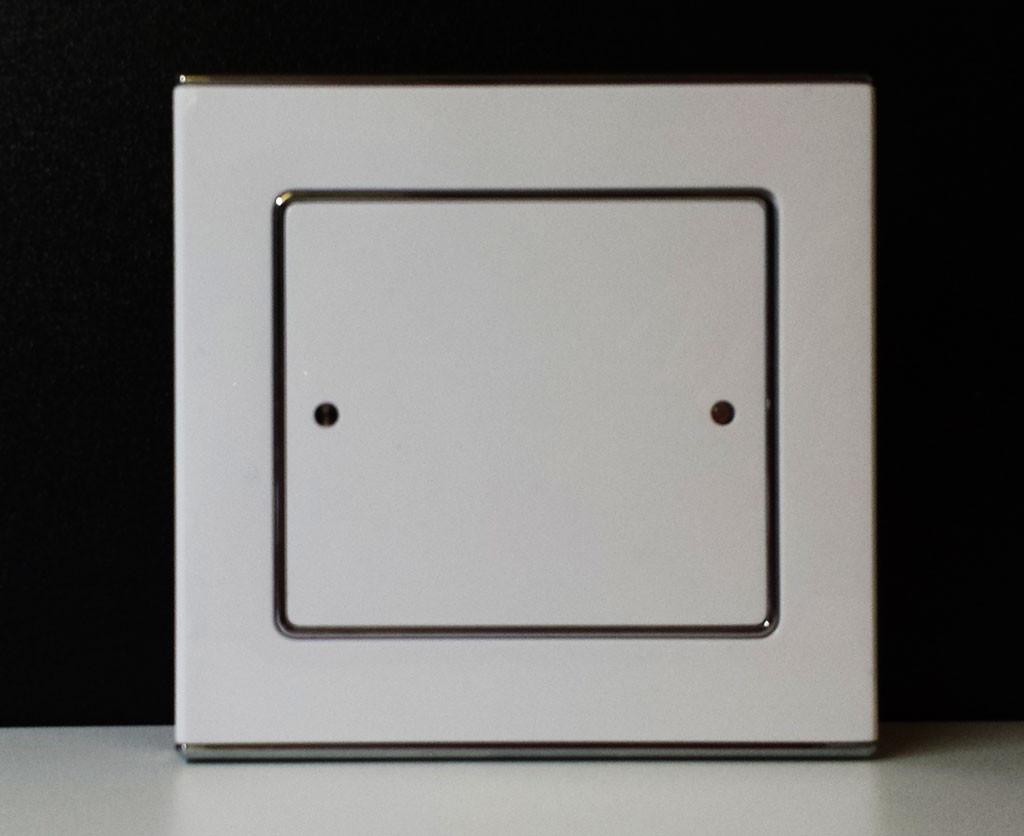

Wall mounted microwave motion sensor switch panel for automatic LED lighting activation
Wall mounted microwave motion sensor switch panel for automatic LED lighting activation12V DC microwave motion sensor switch module for concealed LED lighting control installationMicrowave motion sensor controller unit with wiring terminals for LED strip lighting systemsR123WB-86 motion sensor wiring with a 12V LED strip: power supply to L-IN and N, L-OUT to the strip

12V DC Microwave Wall Mounted Motion Sensor Switch

SKU: R123WB-86
$35.30inc. GST
● Only 2 left

Warranty: 1 year

Product details

Automatically detects people and turns your LED lights on.

Features:

  • Detects movement up to 15 m away, across 120°
  • Easy installation
  • Low voltage, so no special skills or licence are needed. Perfect for DIY.

Specifications:

  • Working voltage: 12 V DC
  • Detection: up to 15 m, 120°
  • Power consumption: 0.5 W
  • Delay time: 5 to 1200 s
  • Size: 86 x 86 x 27 mm

Installation:

  • Use only with the rated voltage and load.
  • The sensor picks up movement across its front more easily than movement straight towards it.
  • Set the delay time, light level and distance with the knobs on the back.

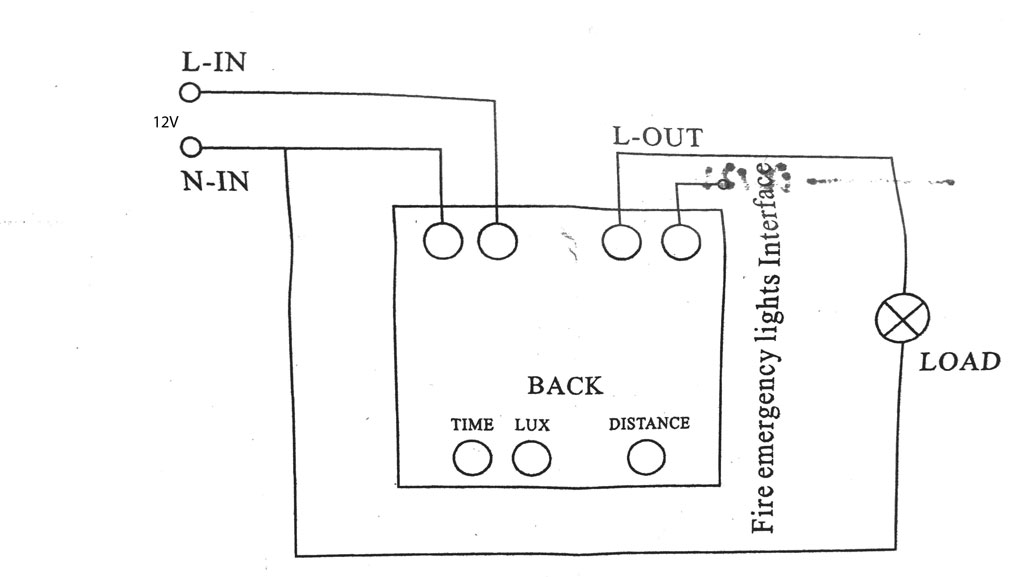

R123WB-86 motion sensor wiring with a 12V LED strip: power supply to L-IN and N, L-OUT to the strip
