PIR / Motion Sensor Switch Adjustable Time Settings

SKU: VL-PIR001T
$17.90inc. GST
● In stock

Warranty: 1 year

Product details

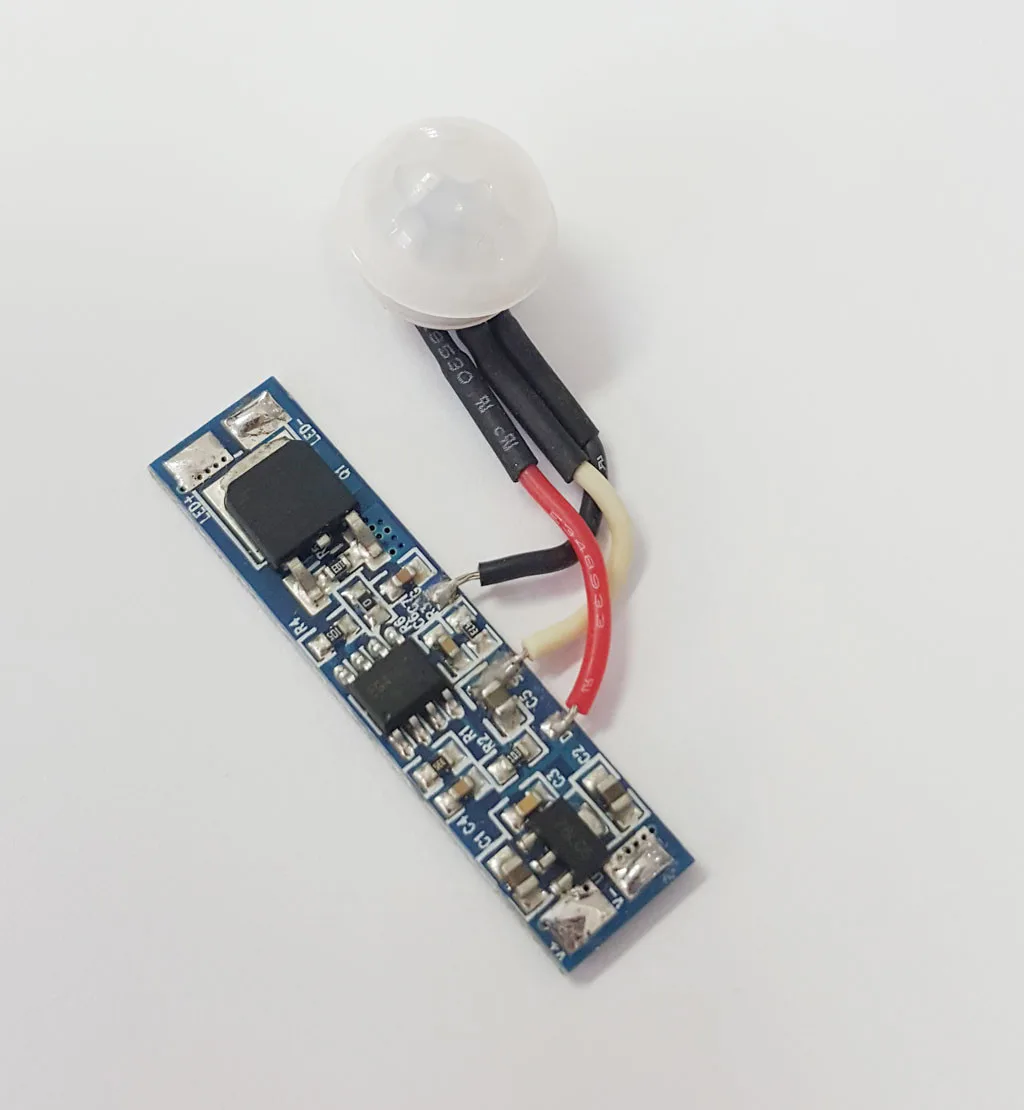

The PIR / Motion Sensor Switch Adjustable Time Settings goes inside an aluminium LED profile and switches the strip on when someone moves nearby. You set how long it stays on, from about 6 to 70 seconds.

Key features:

  • Hands-free on and off
  • Adjustable off delay, about 6 to 70 seconds
  • Fits profiles 6 to 20mm high inside
  • Detects movement about 2m away
  • Up to 8A: 96W at 12V, 192W at 24V

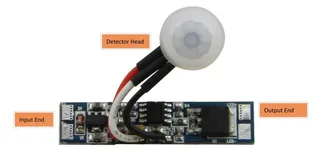

Installation: drill a hole in the plastic diffuser for the 10mm sensor head and push the head through so it sits flush. The board sits inside the profile, between the driver and the strip.

You'll also need: an aluminium LED profile with a plastic diffuser, and a power supply of the same voltage as the strip.

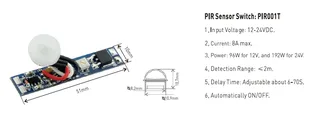

Specifications

Works withSingle colour strips
Voltage12 to 24V DC
Channels1
Max current8A per channel
Max load192W
Detectionabout 2m
Off delayabout 6 to 70s, adjustable
Size10 x 52mm
ControlMotion sensor (PIR)
