Home  /  LED Driver Snappy 30W / 2.5A / 12V

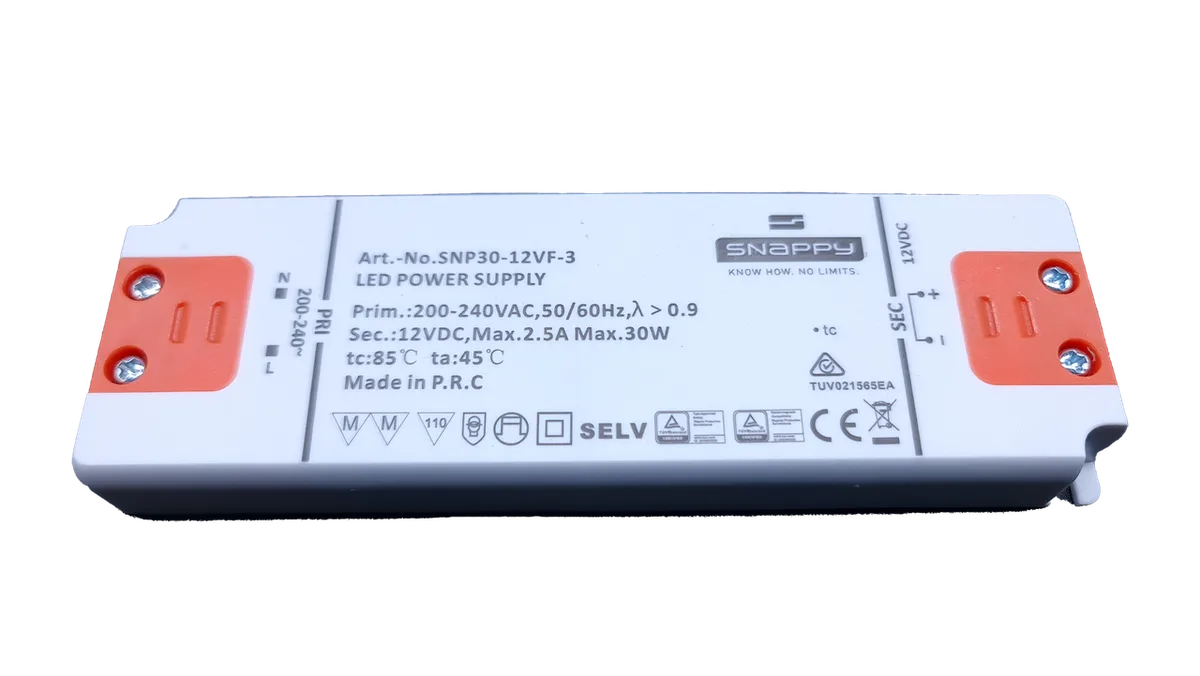

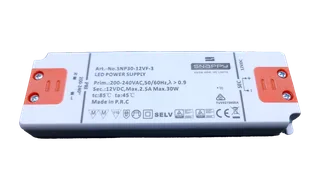

LED Driver Snappy 30W / 2.5A / 12V

SKU: SNP30-12VF
$35.30inc. GST
● In stock

Warranty: 2 years

Product details

The LED Driver Snappy 30W / 2.5A / 12V is a slim hard-wired LED driver for 12V LED strip indoors. Mains and strip wires go into covered screw terminals, so a licensed electrician connects it.

Key features:

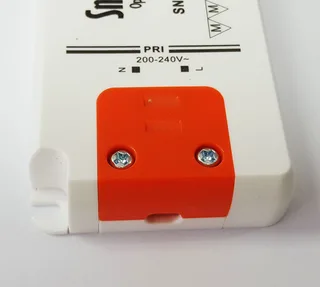

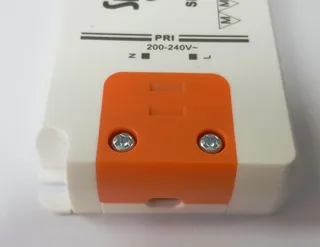

  • Covered screw terminals at each end
  • Slim plastic case for tight spaces, indoors only
  • Screw holes 50mm apart
  • Protected against short circuits, overloads, overheating and open circuits; it resets itself once the fault is cleared

How much strip it runs: up to 27W of 12V LED strip, about 5.5m of 4.8W/m strip or 1.5m of 14.4W/m. Split long lengths into runs wired back to the supply; each strip's page says how long one run can be.

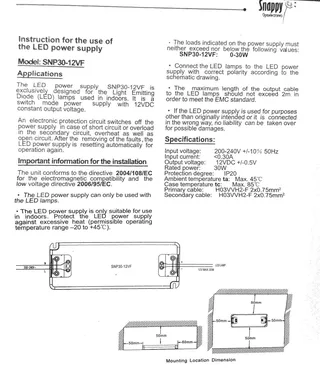

Installation: a licensed electrician must wire it to 240V mains. Keep the cable to the strip under 2m and leave 50mm clear all round (see the wiring picture).

Specifications

TypeDriver with screw terminals
Output12V DC
Power30W
Current2.5A
Runs up to27W of LED strip
DimmableNo
IP ratingIP20
Efficiency88%
Output connectionScrew terminals
Input200 to 240V AC
