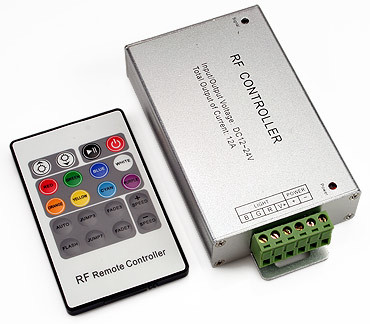

RGB LED Controller with 20 key RF Remote 3 Channel

Forgot Password

$25.00 incl GST

39 in stock

Volka Lighting

Description

Application:

Control flexible and rigid LED Lights. Suitable for 5050, 3528 or 335 LED strips and bars. RGB or 3 x Single colors.

Specifications:

1. Model: VL-CON-RF20Bv2-3CH-12V

2. Working temperature:-20-60°C

3. Supply voltage :DC 12V-24V

4. Size : L130 x W64 x H24mm

5. Weight: 185g

6. Output: Three CMOS drain-open output

7. Connecting Mode : Common anode

8. Rated load current: 4A per channel.

9. 20 key remote control

10. Battery Type:1 x 27A

Remote Control: 20 key Radio Frequency (RF) Remote





Key Function

Remarks

1

On/Off

 On/off lights

2

Play/Stop

3

Brightness UP



4

Brightness DOWN



5

Red



6

Green



7

Blue



 8

White



 9

 Orange



 10

 Yellow



11

Cyan



12

Pink



13

Auto

All modes in circle

14

3 Colour step change

Speed and brightness are adjustable

15

3 Colour fade change

Speed is adjustable, brightness is not

16

Speed Increase

The program speed will add up once pressed

17

Seven Colours flash frequency

Speed and brightness are adjustable

18

3 Colour step change

19

3 Colour fade change

Speed is adjustable, brightness is not

20

Speed Decrease

The program speed will slow down once pressed
